Tap

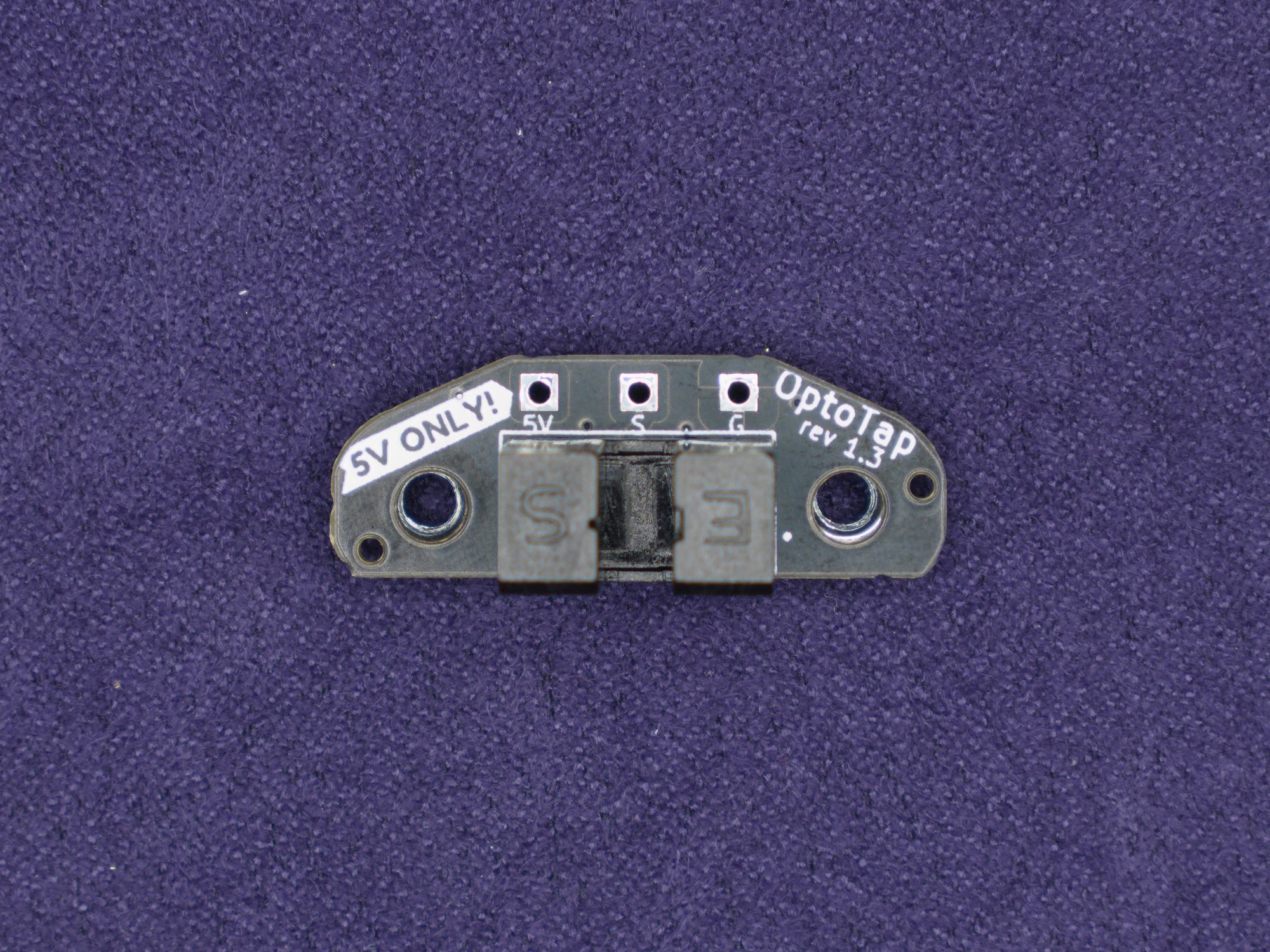

The optical sensor board V1 (5V supply voltage) in the bigger variant with a JST PH connector.
Fitted with OPB666N for up to 100°C ambient temperature
Important Usage Information
The optical sensor board V1 (5V supply voltage) in the bigger variant with a JST PH connector.
Fitted with OPB971N51 for up to 70°C ambient temperature
Important Usage Information

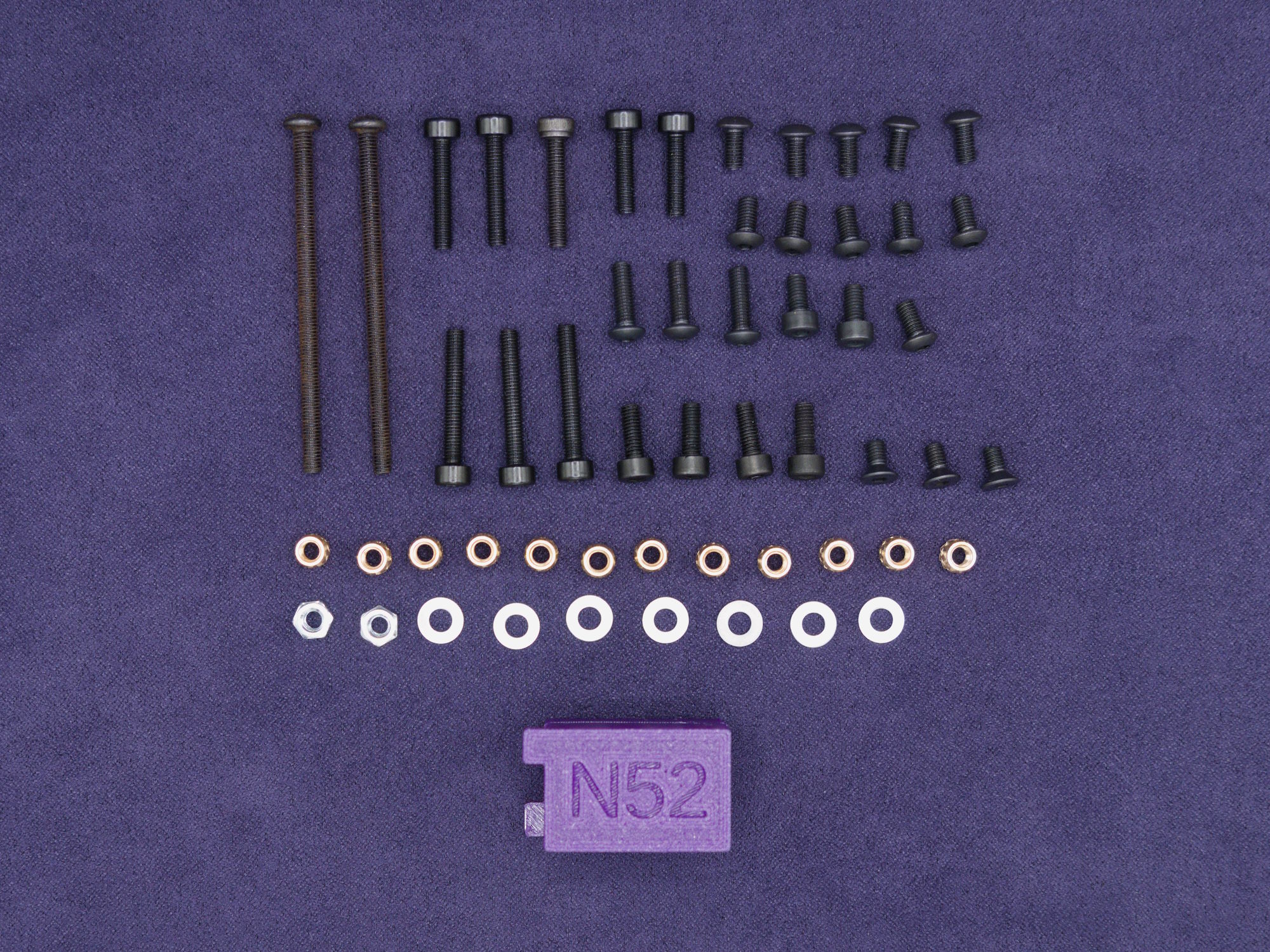

Screw Kit for the Voron Tap, including 2x N52 magnets.
Note: We add at least one screw, nut, washer or insert per BOM line so that you don't need to worry if one drops on the floor.
Bill of Materials (spares indicated by (+1)):
Qty
Part
11 (+1)
Heatset Insert M3x5x4
1 (+1)
M3 Nut
6 (+1)
M3 Washer
2 (+1)
M3x20 SHCS, Steel 8.8 Black
2 (+1)
M3x16 SHCS, Steel 8.8 Black
1 (+1)
M3x12 SHCS, Steel 8.8 Black
3 (+1)
M3x08 SHCS, Steel 8.8 Black
1 (+1)
M3x06 SHCS, Steel 8.8 Black
2 (+1)
M3x06 FHCS, Steel 8.8 Black
2 (+1)
M3x10 BHCS, Steel 8.8 Black
10 (+1)
M3x06 BHCS, Steel 8.8 Black

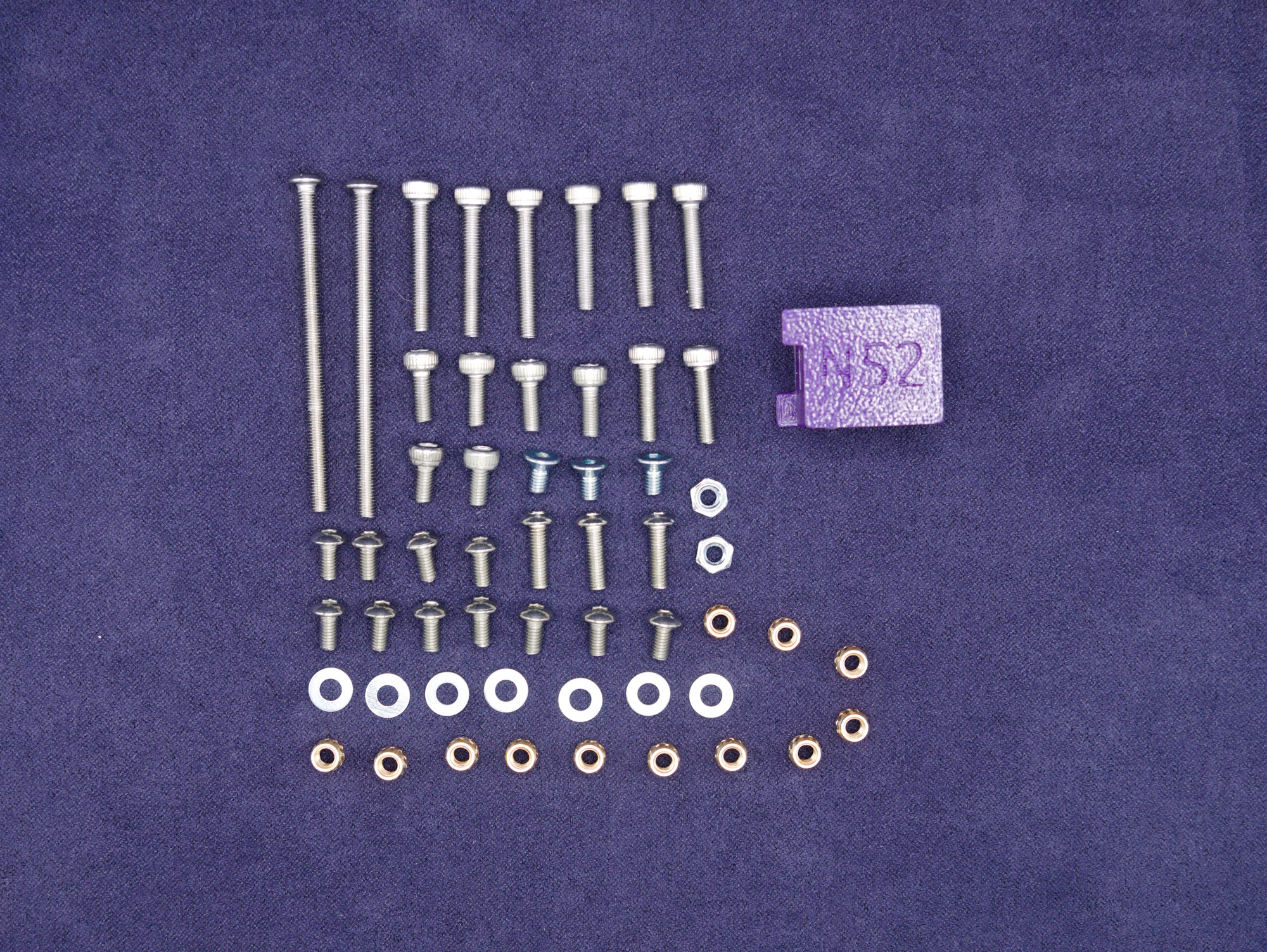

Screw Kit for the Voron Tap, including 2x N52 magnets.
Note: The M3x6 FHCS screws are NOT V2A but zinc coated steel, because they need to be magnetic.
Note: We add at least one screw, nut, washer or insert per BOM line so that you don't need to worry if one drops on the floor.
Bill of Materials (spares indicated by (+1)):
Qty
Part
11 (+1)
Heatset Insert M3x5x4
1 (+1)
M3 Nut
6 (+1)
M3 Washer
2 (+1)
M3x20 SHCS, V2A
2 (+1)
M3x16 SHCS, V2A
1 (+1)
M3x12 SHCS, V2A
3 (+1)
M3x08 SHCS, V2A
1 (+1)
M3x06 SHCS, V2A
2 (+1)
M3x06 FHCS, Zinc Coated, Ferromagnetic
2 (+1)
M3x10 BHCS, V2A
10 (+1)
M3x06 BHCS, V2A
