Replimat Labs

Voron Trident R2 Hardware Kit - Full

Hardware Kit (Screws, Washers, Heatset Inserts and optionally extrusion nuts) for building a Voron Trident R2. The required quantities were determined using the Voron configurator with the following settings: Direct Feed New Build Blind Joints 300mm Spec Not included by default are the F695-2RS bearings, giving you the choice if different ABEC classes should you so desire. Also not included is the MR85ZZ bearing, as this is usually included with extruder hardware. Qty Part BOM count Extras 120 Heatset Insert M3x5x4 109 11 17 Heatset Insert M5x7x6 15 2 7 M3 Lock Nut 6 1 5 M3 Washer 4 1 65 M3x06 BHCS, V2A 59 6 19 M3x06 FHCS, V2A 17 2 158 M3x08 SHCS, V2A 143 15 3 M3x10 FHCS, V2A 2 1 81 M3x12 SHCS, V2A 73 8 30 M3x16 SHCS, V2A 27 3 4 M3x20 SHCS, V2A 3 1 11 M3x25 SHCS, V2A 10 1 15 M3x30 SHCS, V2A 13 2 10 M3x40 SHCS, V2A 9 1 3 M3x50 SHCS, V2A 2 1 3 M4 Knurled Nut 3 0 8 M4x6 BHCS, V2A 7 1 50 M5x10 BHCS, V2A 45 5 64 M5x16 BHCS, V2A 58 6 5 M5x30 BHCS, V2A 4 1 5 M5x40 BHCS, V2A 4 1 19 Screw 2x10mm 17 2 27 Shim Rings 5x10x1 24 3 Roll-in nut compatibility Note that we cannot guaranteee proper fitment of the Roll-in nuts - every extrusion manufacturer makes their extrusions a bit different. European 2020 profiles Type B with 6mm wide slot typically work, as well as those delivered by Formbot. I personally tested those on a Voron 1.8 LDO Extrusion Kit, but I don't know if LDO changed the style of their extrusions.

From €34.00*

Details

Replimat Labs

Voron Trident R2 Hardware Kit - Upgrade

Hardware Kit for upgrading your Voron Trident to the latest R2 release. The required quantities were determined using the Voron configurator with the following settings: Direct Feed I have a Voron Trident R1 already Blind Joints 300mm Spec Since you will reprint many parts, we set the number of M3 heatset inserts to what you would need for a full rebuild, so that you don't need to remove the heatset inserts from your old parts. You will need the quantities from your old R1 build. If you bought a kit (Formbot/LDO/Siboor etc), you need to compare their screw quantities against the Trident R1 BOM to ensure you have enough screws. If you want to be on the safe side, we offer a worry-free full screw kit for the Trident R2 build. Full Hardware Kit You also need at least 4 F695 Bearings - select the desired quantity when adding the product to the basket. Kit Contents Qty Part Upgrade BOM Extras 120 Heatset Insert M3x5x4 109 * 11 17 Heatset Insert M5x7x6 15 2 9 M3 Roll-in nut 8 1 2 M3 Washer 1 1 31 M3x06 BHCS, V2A 28 3 11 M3x12 SHCS, V2A 10 1 13 M3x16 SHCS, V2A 11 2 5 M3x25 SHCS, V2A 4 1 7 M3x40 SHCS, V2A 6 1 18 M5x16 BHCS, V2A 16 2 5 M5x40 BHCS, V2A 4 1 3 Shim Rings 5x10x1 2 1 * Same amount as full kit, based on the assumption that you might want to re-print all parts and don't want to extract your old heatset inserts Roll-in nut compatibility Note that we cannot guaranteee proper fitment of the M3 Roll-in nuts - every extrusion manufacturer makes their extrusions a bit different. European 2020 profiles Type B with 6mm wide slot typically work, as well as those delivered by Formbot. I personally tested those on a Voron 1.8 LDO Extrusion Kit, but I don't know if LDO changed the style of their extrusions.

From €15.50*

Details

Replimat Labs

EMU Panel

Panel for the EMU MMU. Material Polycarbonate, Dimensions 343x84mm, Thickness 1.5mm

€3.50*

Replimat Labs

Heatset Insert, M5x7x6, 25pcs

25 pcs Heatset Inserts as per Voron Trident R2 spec.Specifications:ThreadM5Outer Diameter7mmLength6mmMaterialBrass

€3.50*

Replimat Labs

A4T Hardware Kit

Hardware Kit for the A4T. Comes with the SK6812 RGBW LEDs, 26AWG FEP wires (3x1m) and mounting hardware for all extruder variantsYou might wish to complement this kit with small zip-ties.Qty Part 5 M3 Square Nut 4 M3x08 SHCS, V2A 3 M3x06 BHCS, V2A 2 M3x50 SHCS, V2A 3 M3x16 SHCS, V2A 3 M3x20 SHCS, V2A 3 M3x12 SHCS, V2A 3 SK6812 LED PCB 3 26AWG Wires, 1m each 3 Heatset Insert M3x5x4 2 M3x20 Standoff 2 M3x30 Pin 2 M4 Metal Tube, 22.5mm

€14.50*

Replimat Labs

XoL Carriage Tube & Pin

Set of:2x tubes (4mm OD, ~3.2mm ID, 22mm length2x Pin d=3mm, length = 30mmSuitable for the XoL carriage

€2.50*

Replimat Labs

25x M3 Square Nuts DIN 562

25 pieces M3 Square Nuts, DIN 562 ("niedrige Form")

€1.10*

Crossbow Filament Cutter

Designed by DW Tas, Manufactured by Fysetc. Crossbow was designed and developed around the A4T, but is intended for universal for use in printed toolheads that have a flat mounting surface below the extruder. Crossbow A4T parts can be downloaded here: https://github.com/Armchair-Heavy-Industries/A4T. Important: Apply thread locker to avoid screws falling out during printing. See the Crossbow Documentation for instructions.Package contents:1x Crossbow Filament Cutter3x Square M3 Nut3x Heatset Insert3x M3x16 BHCS Screw2x Spare Blades1x Rubber Installation Helper1x Spare Set Screw2x Hex Key

€25.00*

Fushi F623-2RS ABEC-7

ABEC-7 precision

€0.99*

Fushi F695-2RS ABEC-9 Bearing

ABEC-9 precisionPhoto shows the ABEC-7 variant, the ABEC-9 variant is blue

€1.19*

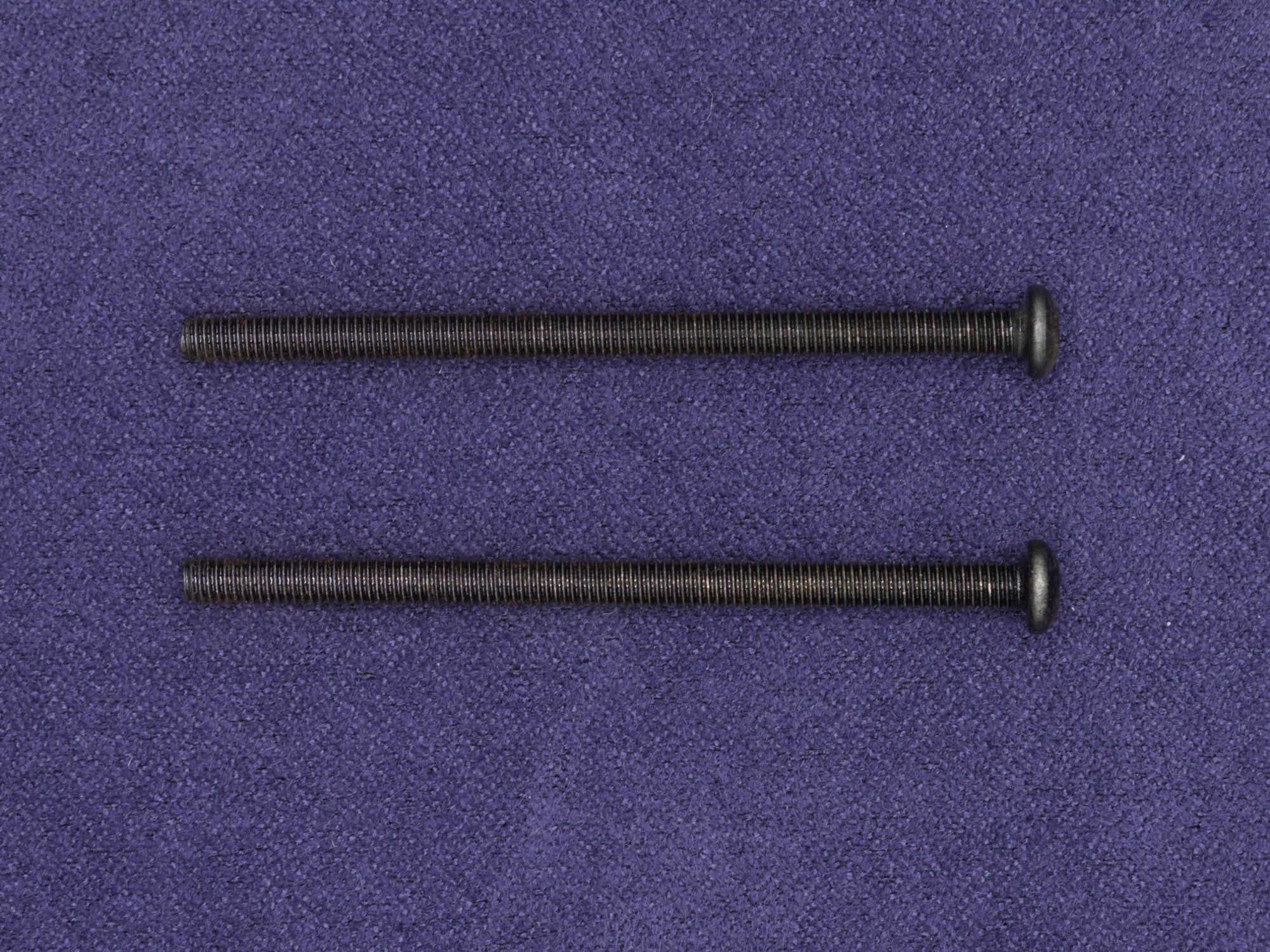

M3x50, Fully threaded for Tap, Steel Black 12.9, 2 pcs

2 pieces M3x50 screw in Steel Black 12.9, fully threaded

€0.69*

Details

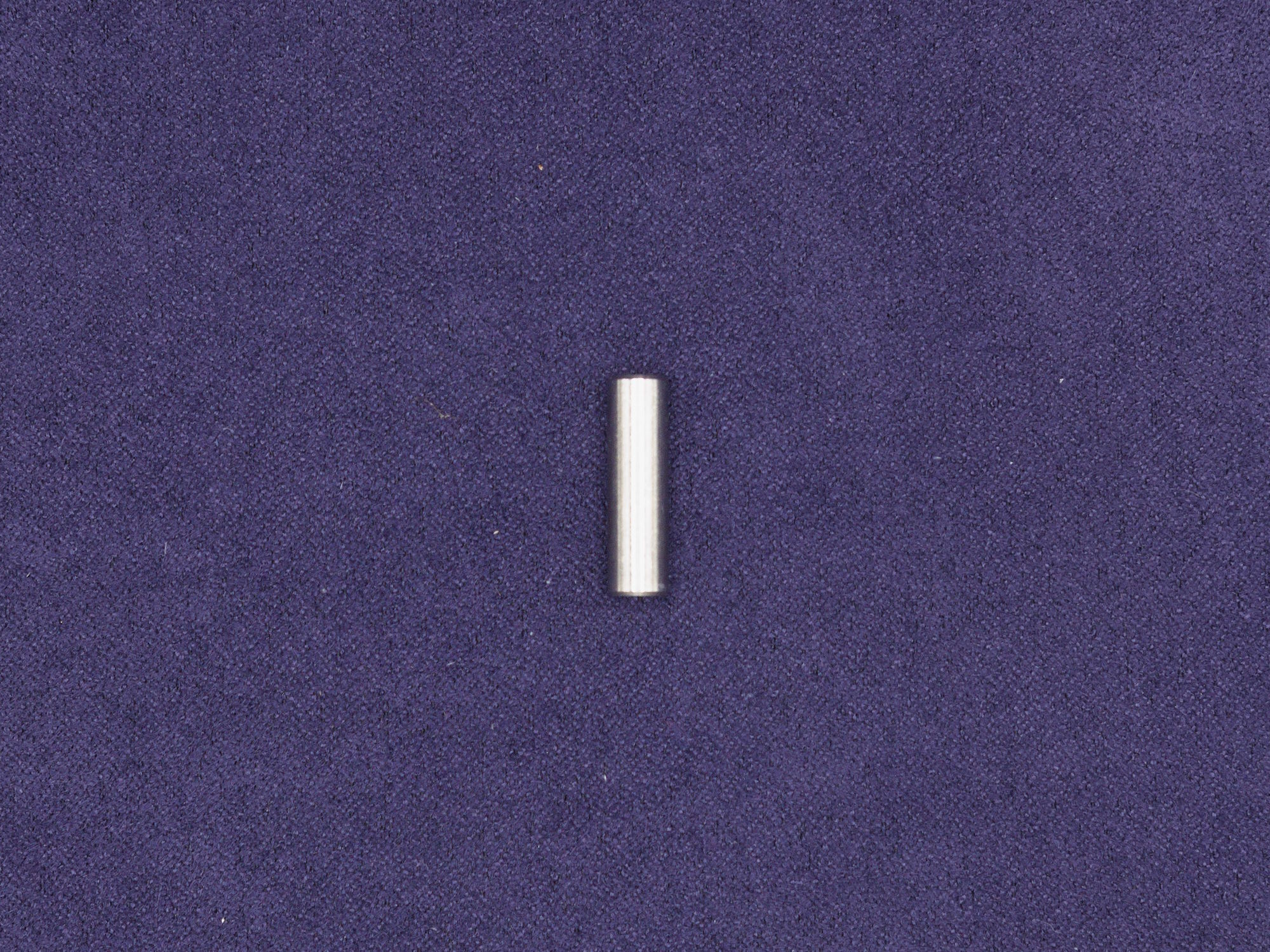

Pin 18x5mm

For the v2.4 / Trident Front Idler Pin Mod

€0.49*

Fushi F695-2RS ABEC-7 Bearing

ABEC-7 quality

€0.89*

Details

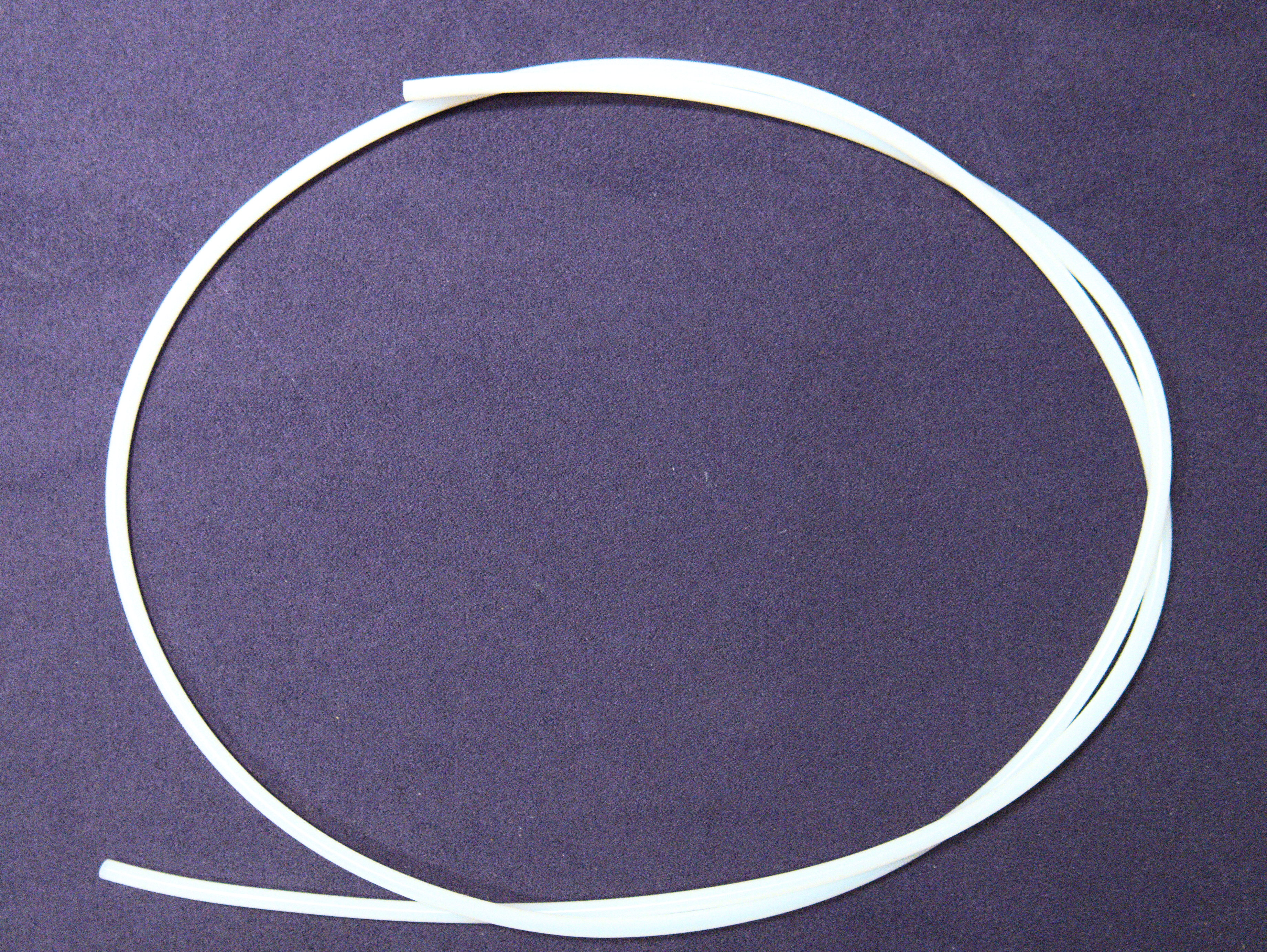

PTFE Tube 4mm OD / 3mm ID

Price per meter. Comes uncut if multiples are ordered. For example, order 5 pieces = 5 meter uncut.

€2.19*

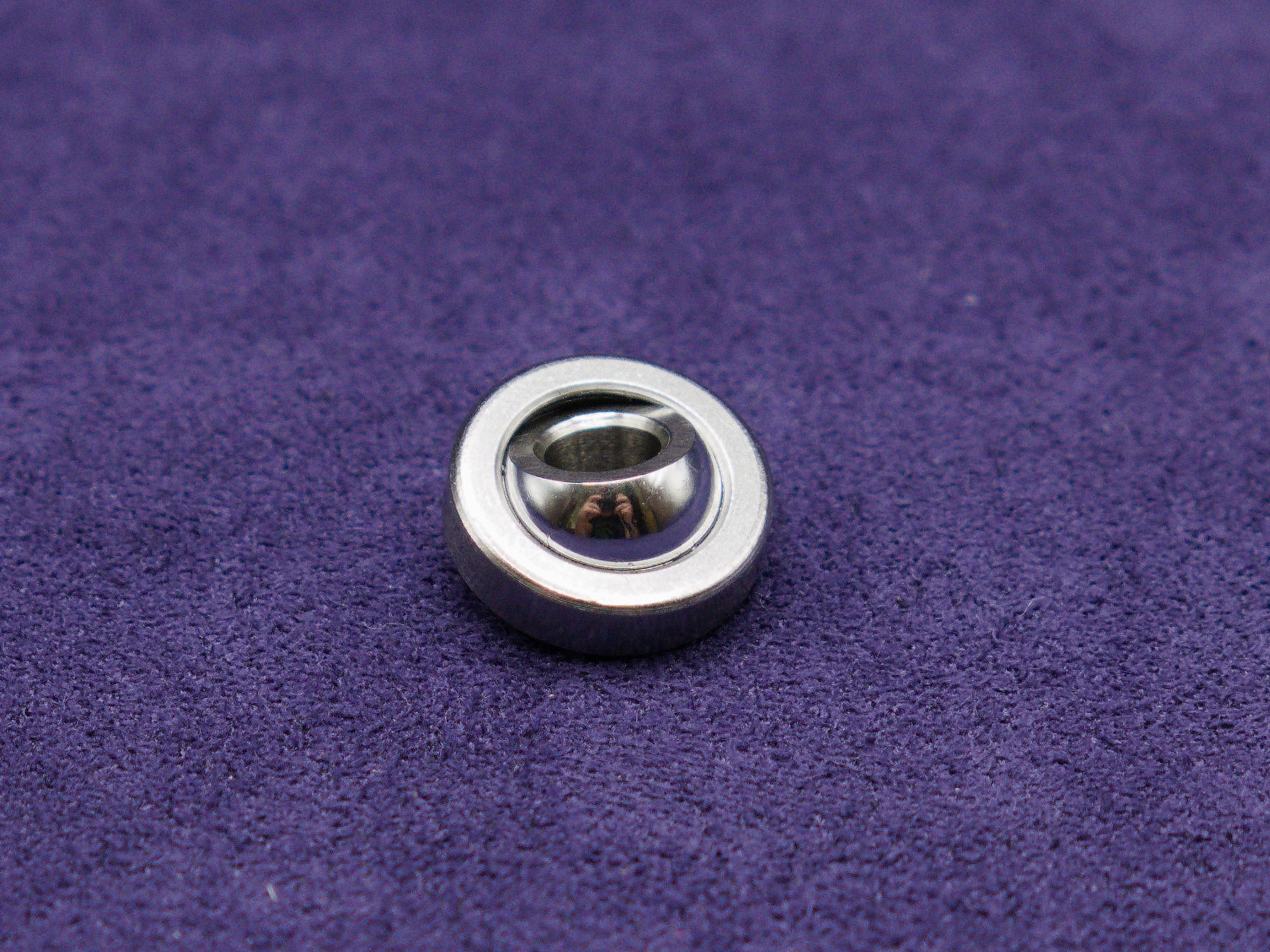

GE5C Spherical Bearing

GE5C Bearing for Voron Trident or the Voron 2.4 GE5C mod.

€3.69*

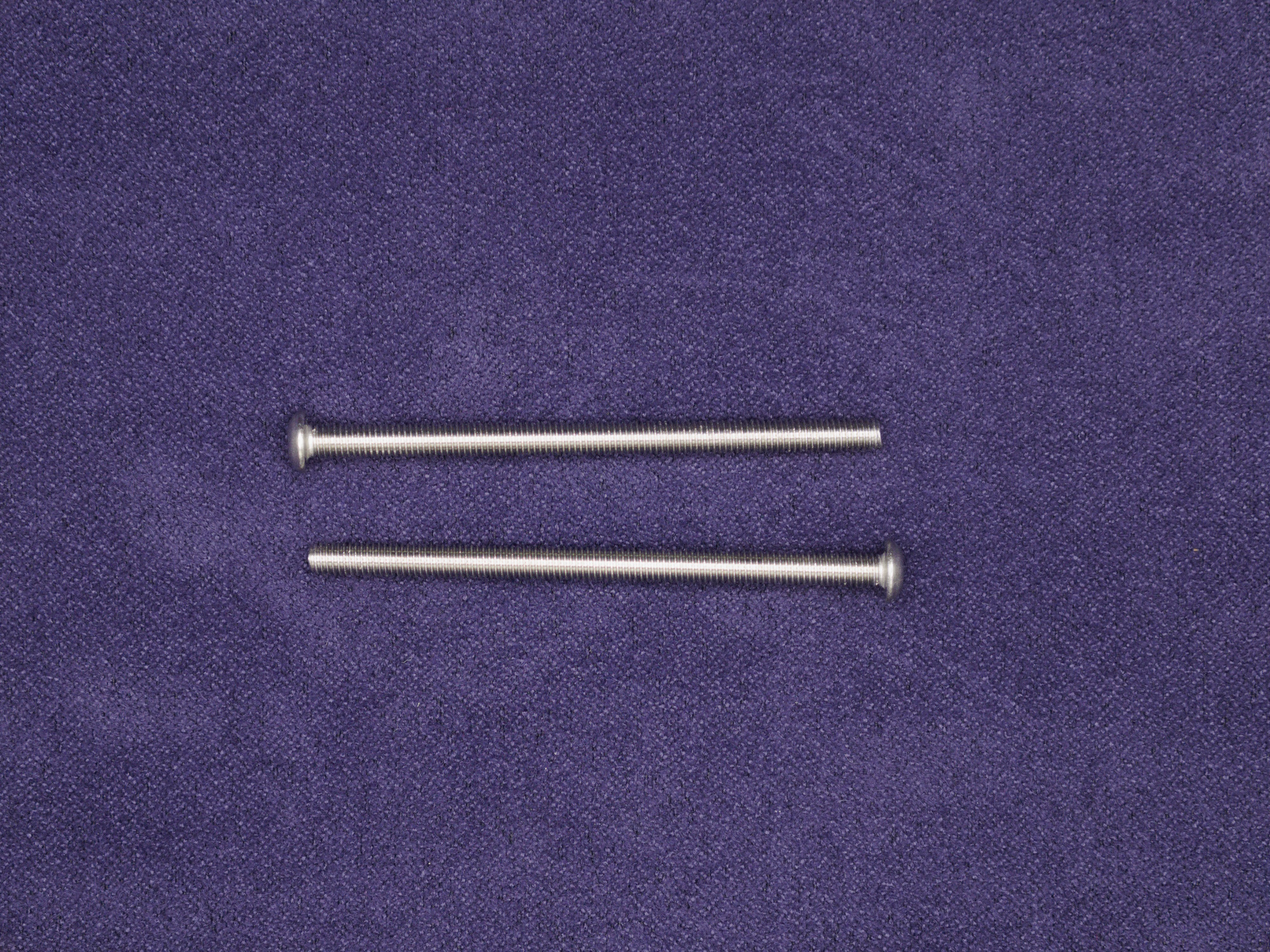

M3x50, Fully threaded for Tap, V2A, 2 pcs

2 pieces M3x50 screw in Stainless Steel V2a, fully threaded

€0.69*

PTFE Tube 4mm OD / 2.5mm ID

Price per meter. Comes uncut if multiples are ordered. For example, order 5 pieces = 5 meter uncut.

€2.50*

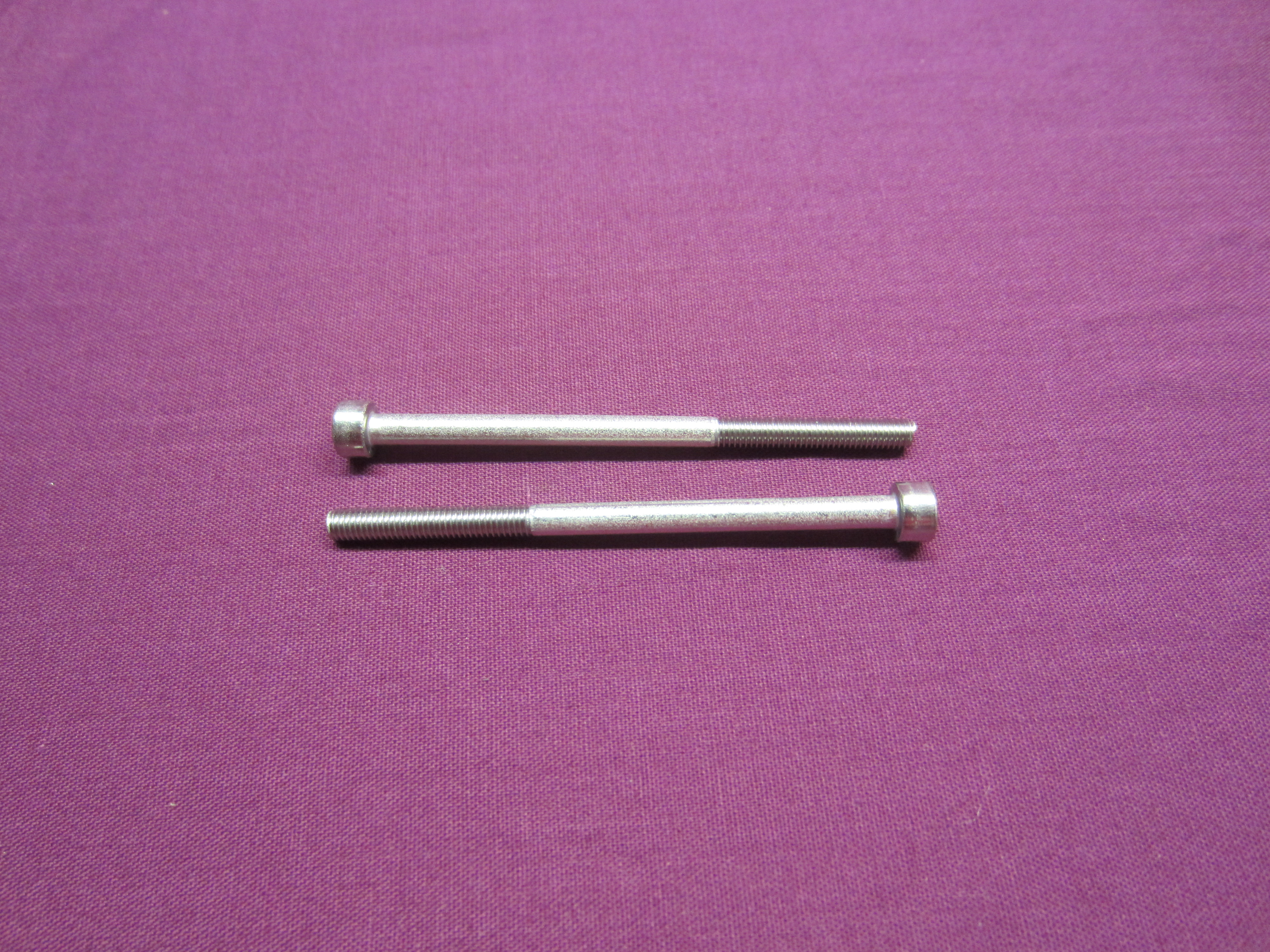

M3x50, Stainless Steel V2A, 2 pcs

2 pieces M3x50 screw in Stainless Steel V2a

€0.69*

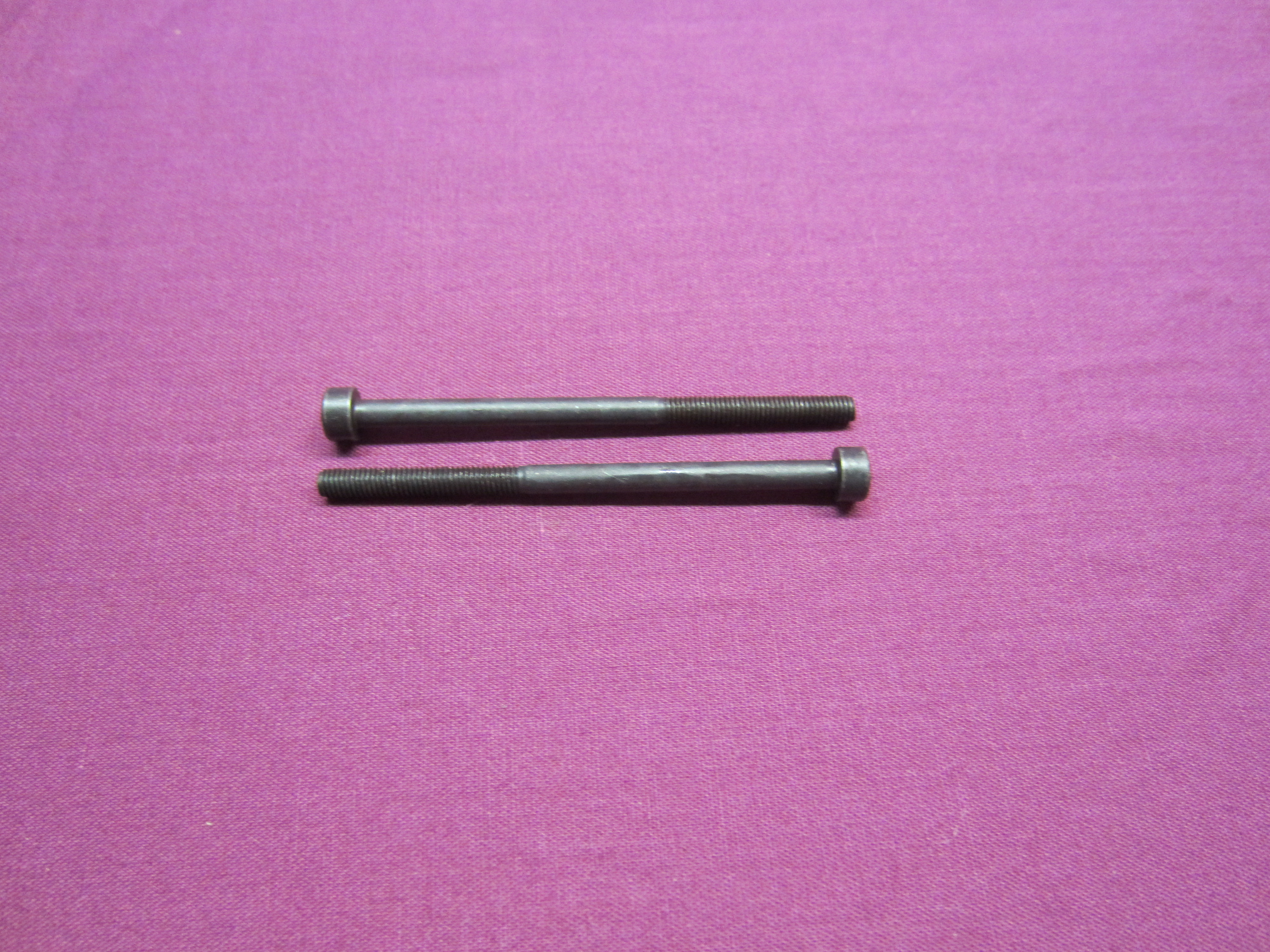

M3x50, Steel Black, 2 pcs

2 pieces M3x50 screw in Steel Black

€0.69*

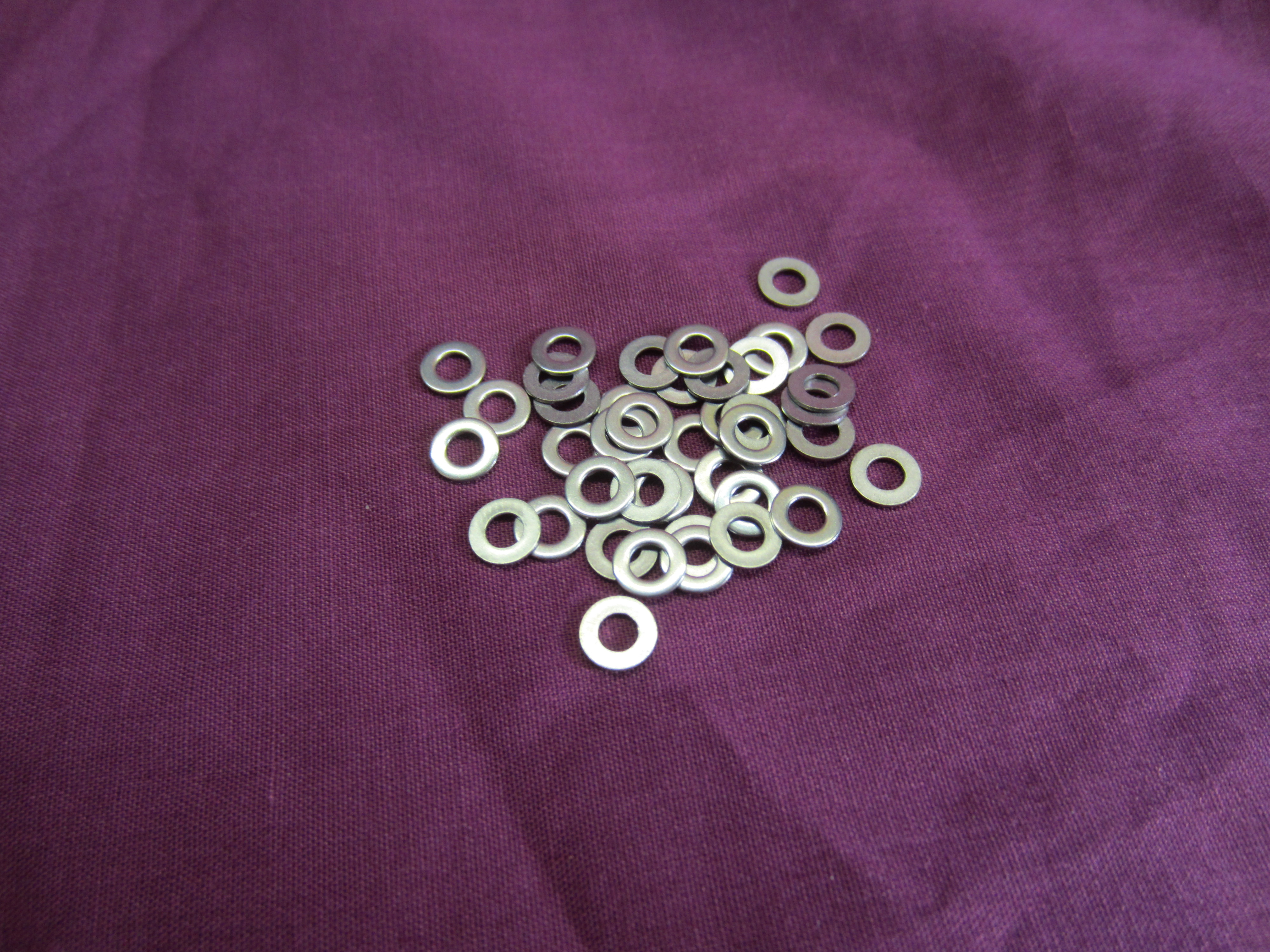

3x6x0.5mm Shim Ring DIN 988, 40 pcs

Shim Ring with 3mm inner diameter, 6mm outer diameter and a thickness of 0.5mm. 40 pieces.Height tolerances according to DIN 988: -0.05mm.

€3.50*

Details

M2x10mm self-tapping screw, 25pcs

For the Klicky Probe or your v0.1/v1.8/Trident/v2.4 builds Fits the Omron D2F Switches

€0.99*

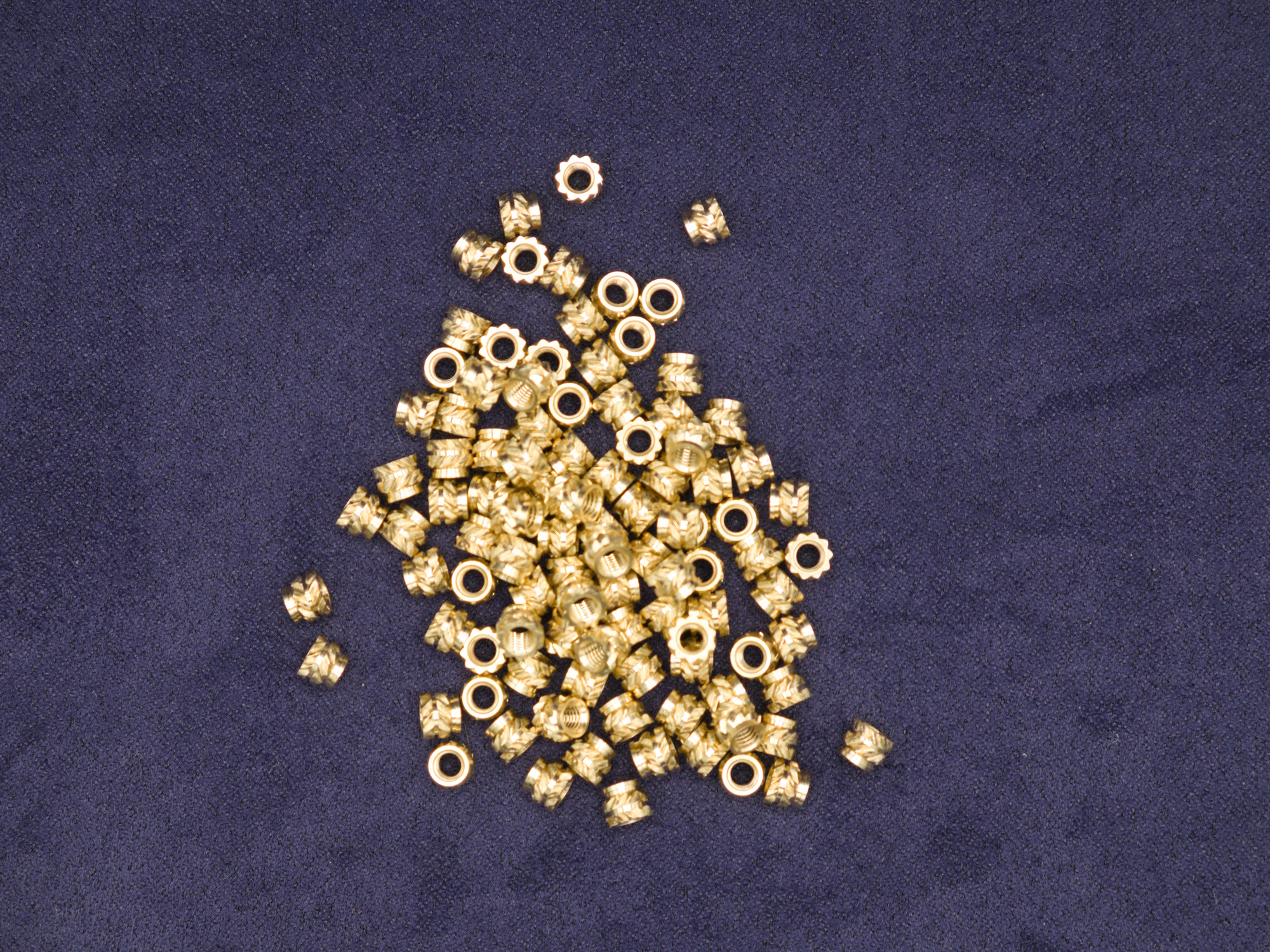

Heatset Insert, M3x5x4, 100pcs

100 pcs Heat Set Insert, M3x5x4, according to the Voron Sourcing GuideSpecifications:ThreadM3Outer Diameter5mmLength4mmMaterialBrass

€4.50*

5pcs M2.5x8 Screws

For attaching the Dragon hotend to the Afterburner mount. Comes with one screw extra in case gravity kicks in.

€0.59*

Neodym Disc Magnets, 6x3mm, N45, 10 pcs

10 Neodym disc magnets, grade N45 with Nickel-Copper-Cickel Plating. Very well suited for the klicky probe due to the high conductivity of the surface. Magnets are delivered with a holder to prevent damage to the magnets and avoid sticking to things they shouldn't stick to. Material Neodym (NdFeB) Grade N45 Coating Nickel-Copper-Nickel (Ni-Cu-Ni) Diameter 6 mm Height 3 mm Dimensional Accuracy ± 0,1 mm Weight ca. 0.64 g

€4.59*
