Pre-release! These boards were hand-assembled for early adopters, so some flux residue is present and can be cleaned with isopropyl alcohol

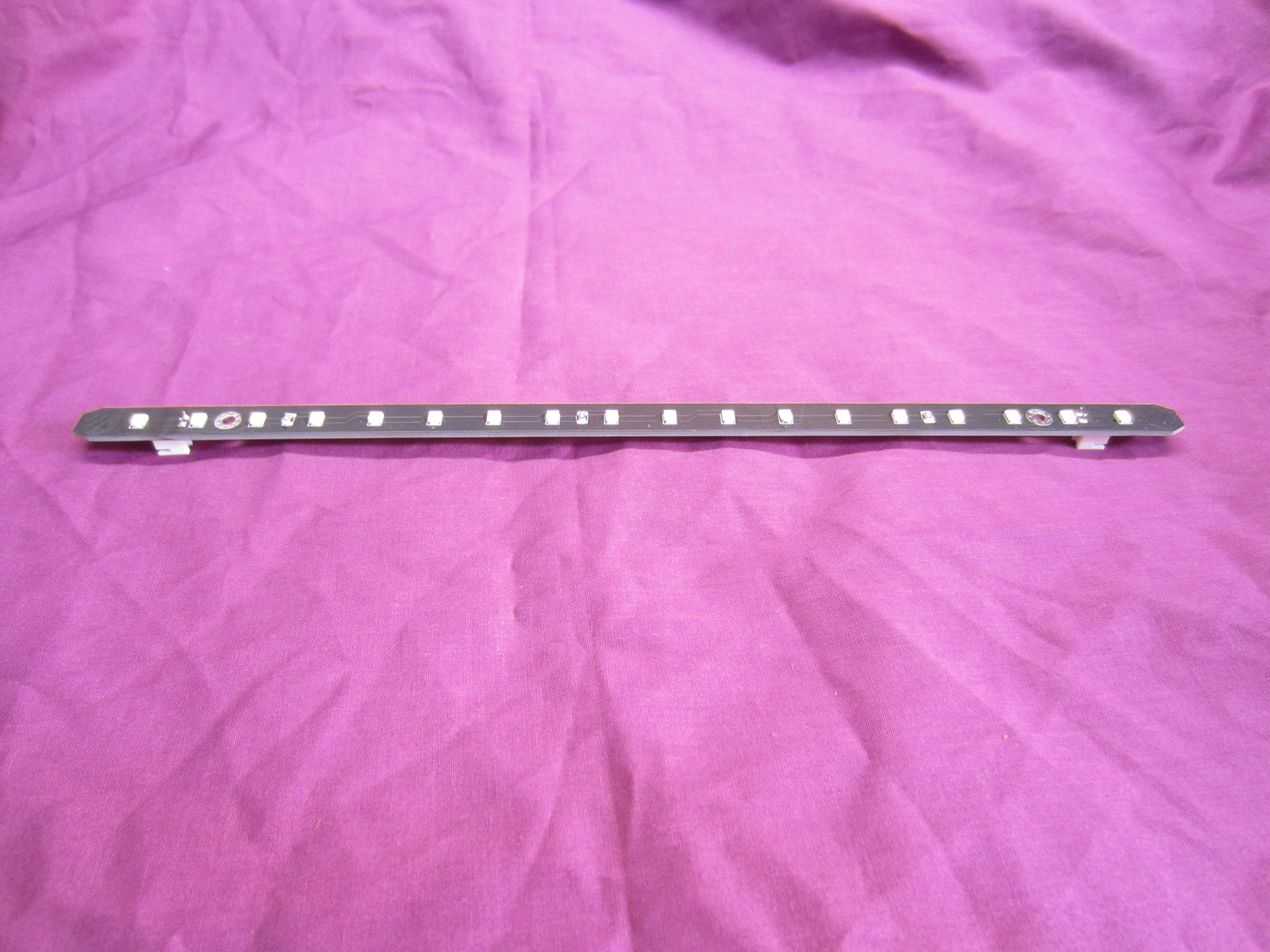

Daylight on a Stick with the following specifications:
LED Type
Cree JE2835AWT-R-U35GA
Color Temperature
3500K
CRI
90
Voltage / Current
24V, 320 mA
Luminous Flux (per LED)
34.5-36lm
Approx Δt over ambient
35-40°K
PCB Dimensions
270x11mm
Pre-release! These boards were hand-assembled for early adopters, so some flux residue is present and can be cleaned with isopropyl alcoholDaylight on a Stick with the following specifications:LED TypeBXFN-40G-21L-3C4-00-0-3 or BXFN-40G-11L-3C4-00-0-3
Color Temperature4000KCRI90Voltage / Current24V, 250 mALuminous Flux (per LED)34.5-36lmApprox
Δt over ambient35-40°KPCB Dimensions270x11mm

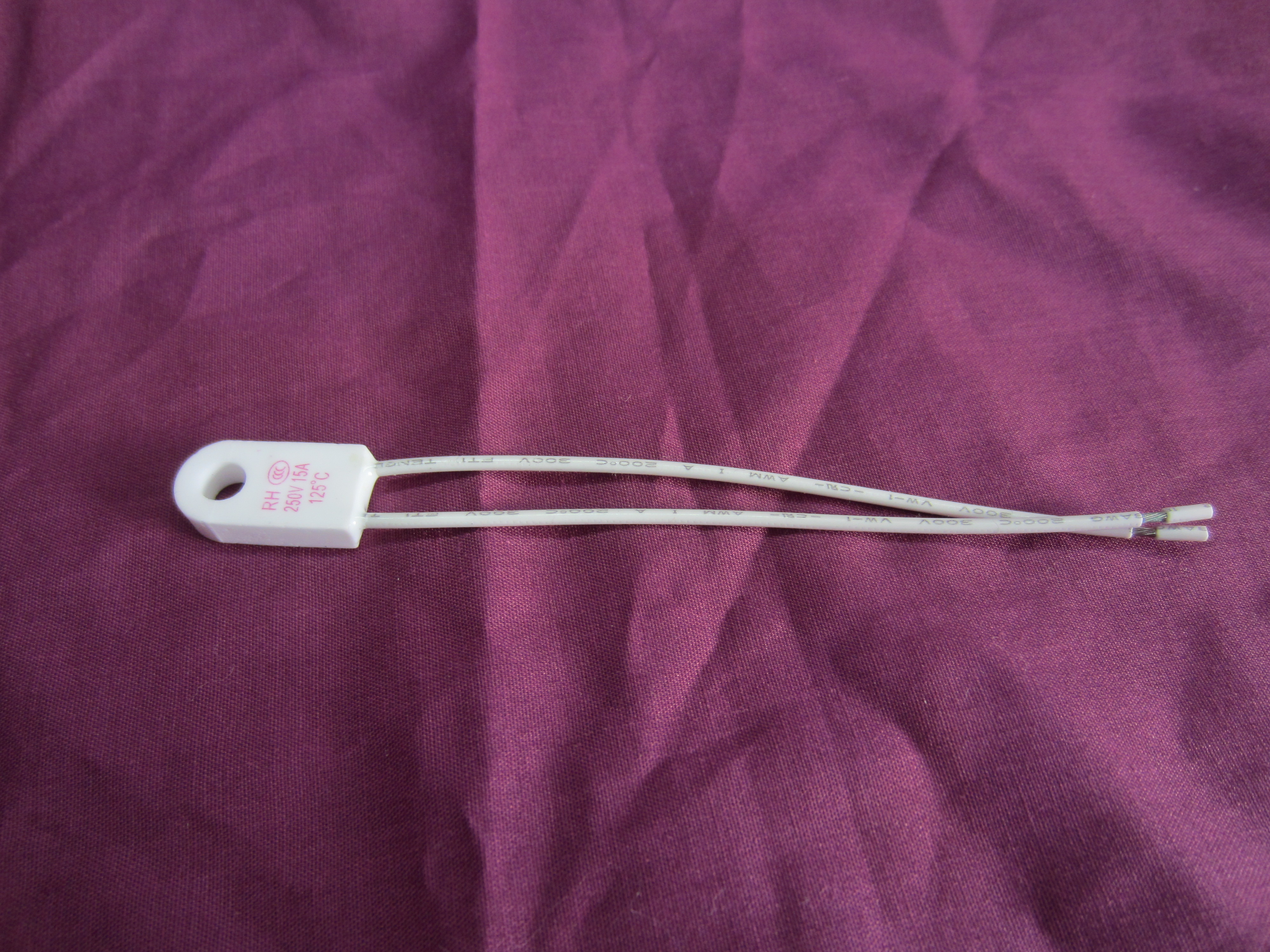

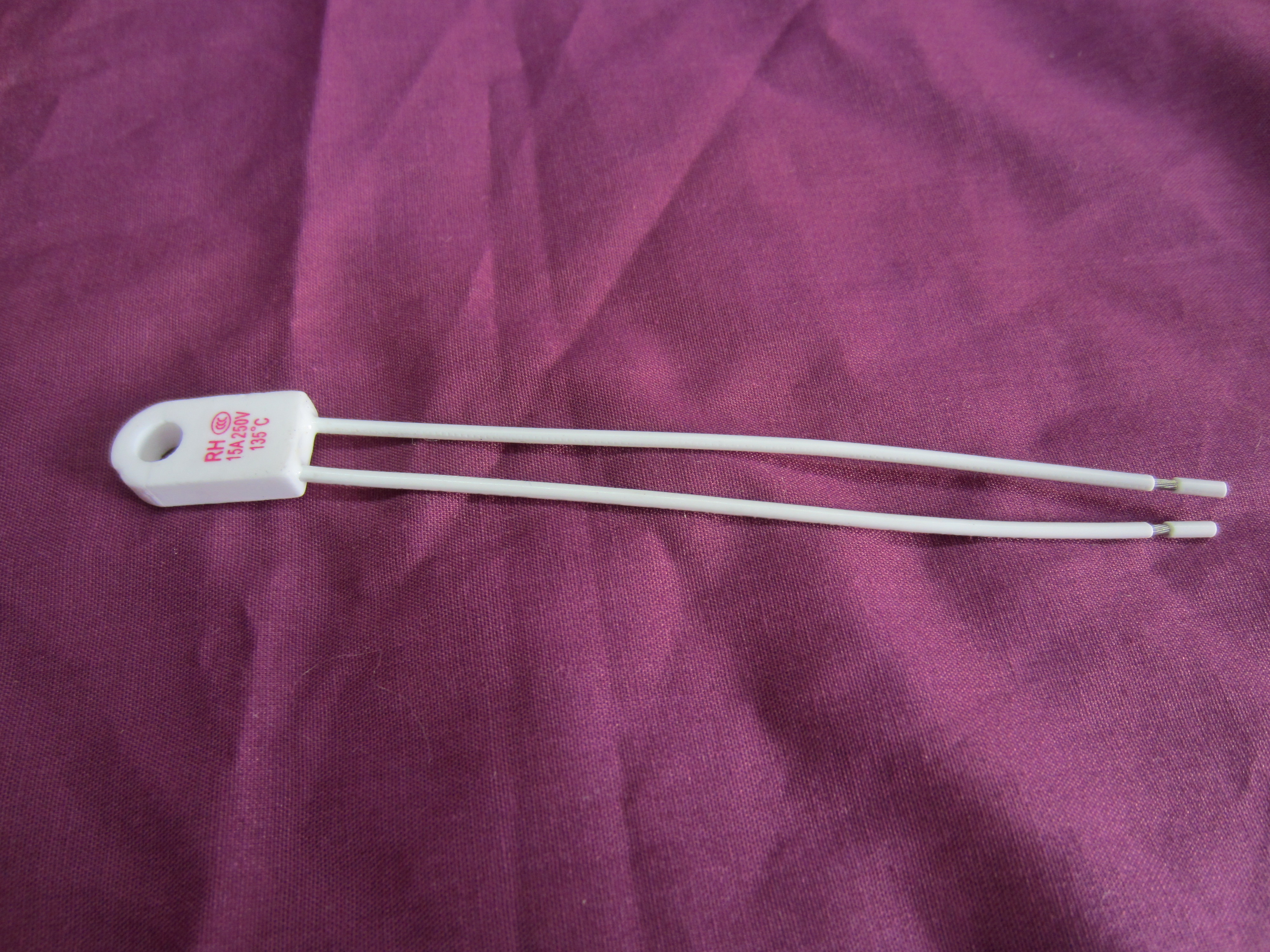

Temperature fuse to protect the bed in case of a failure. 250V 15A 135°C. Picture shows the 125°C variant.Mounting Hole Diameter4mmLength25mmWidth11mmHeight5mmLength of wiringca 9cm
