Designed by DW Tas, Manufactured by Fysetc. Crossbow was designed and developed around the A4T, but is intended for
universal for use in printed toolheads that have a flat mounting surface
below the extruder.
Crossbow A4T parts can be downloaded here: https://github.com/Armchair-Heavy-Industries/A4T.
Package contents:1x Crossbow Filament Cutter3x Square M3 Nut3x Heatset Insert3x M3x16 BHCS Screw2x Spare Blades1x Rubber Installation Helper1x Spare Set Screw2x Hex Key

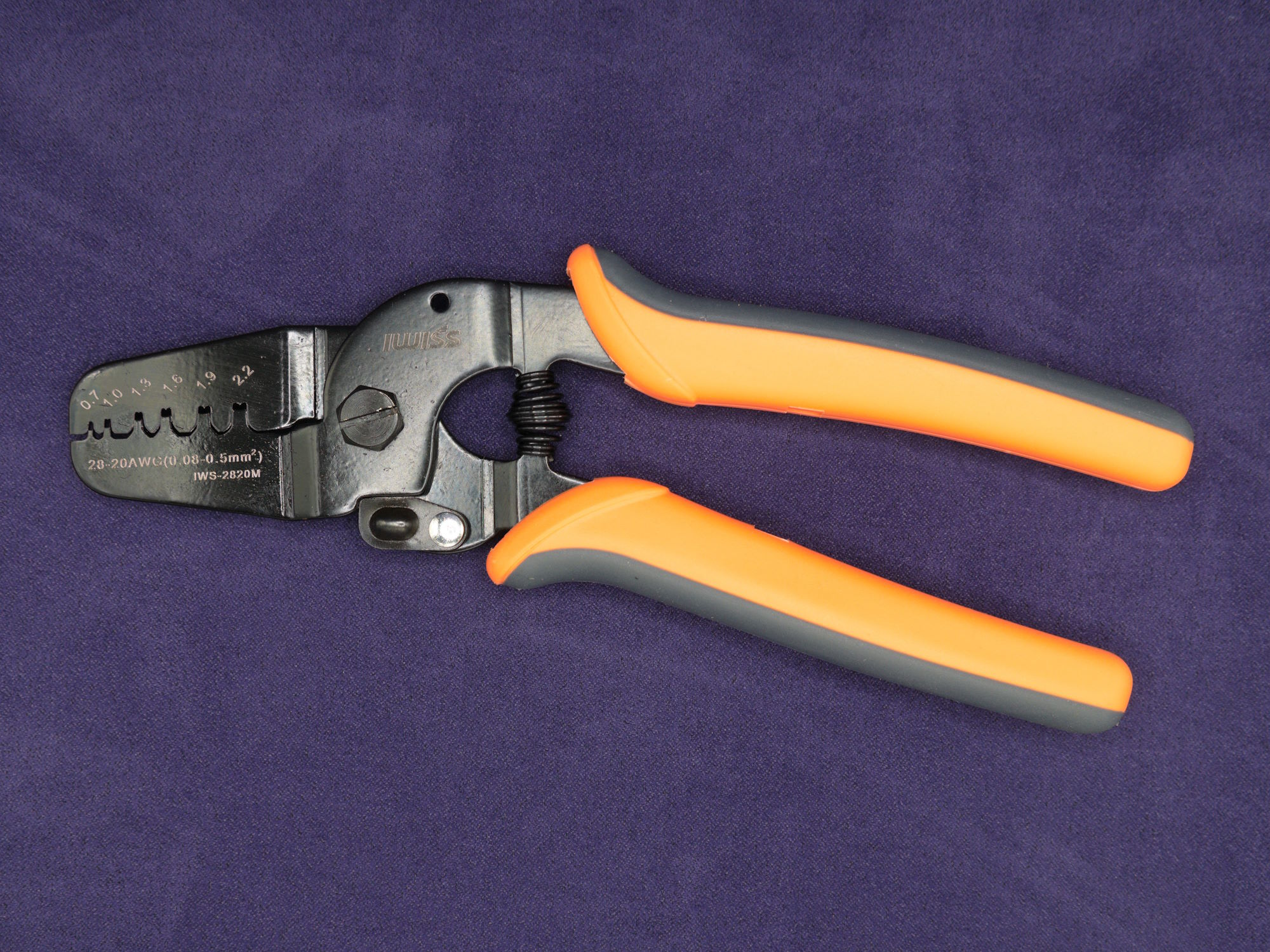

The IWISS IWS-2820M is one of the recommended tools to crimp JST XH, PH, MicroFit 3.0 and many other common connectors used in your Voron build.
Suggested crimping technique:
Crimp strands
Slightly pull on the wire to ensure proper crimp
Crimp insulation
Some common die sizes:
Type
Strand
Insulation
MicroFit 3.0 Crimps 24-20AWG
1.6mm
1.9mm
JST XH
1.6mm
1.6mm
JST PH
1.3mm
1.6mm
ECAS04 PTFE Connector. Must be assembled by pushing the blue part into the grey part - parallel pliers are the easiest way to do it. Avoid using your fingers ;)

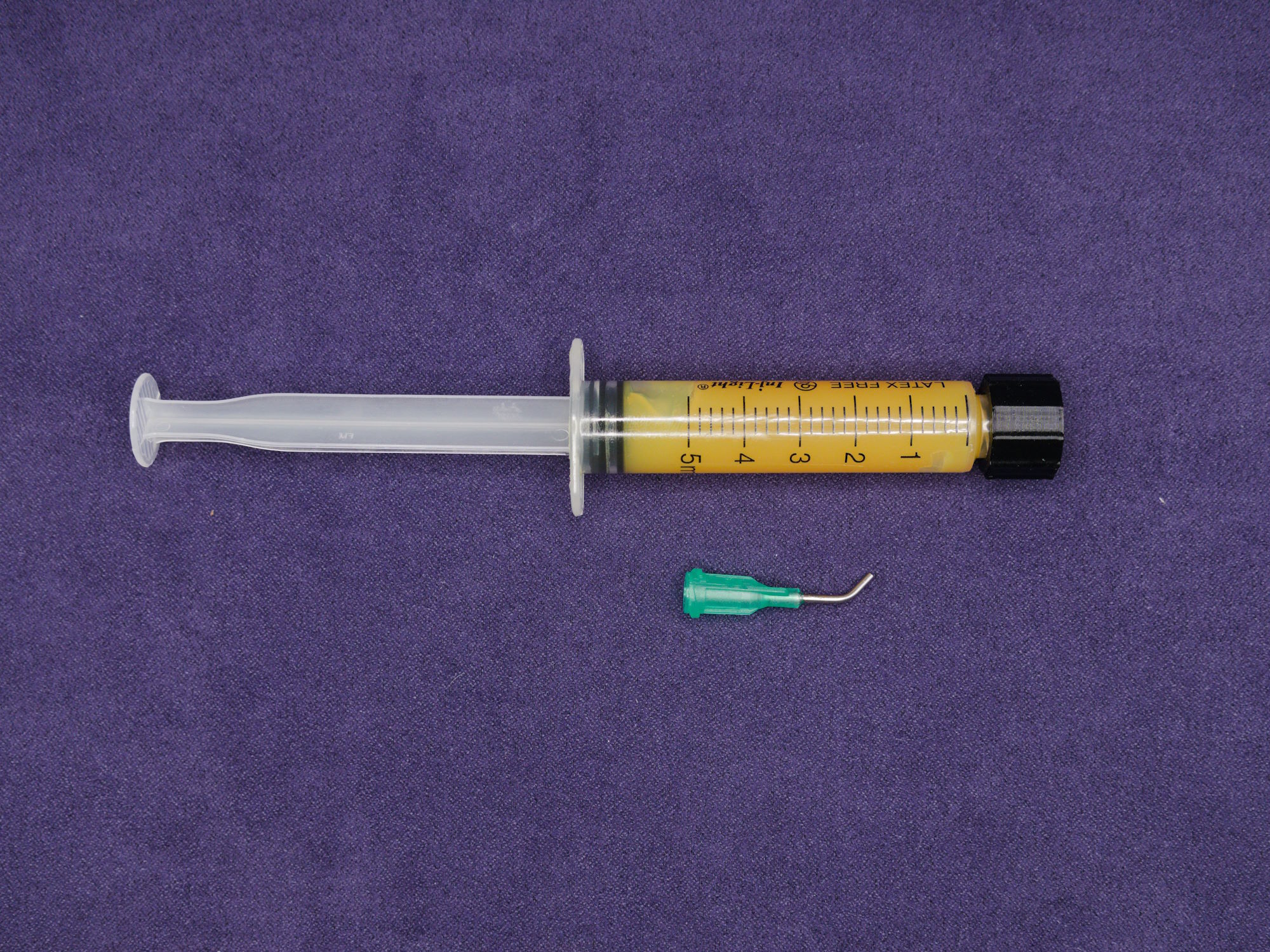

Fuchs Lagermeister BF2 in a 5ml syringe with blunt needle. Sufficient for 2-3 full lubrications of a Voron v1.8 or v2.4. Small air bubbles can happen due to the manual filling process - every syringe has a minimum overall weight of about 9g.
Warning! Traces of the product can stick to the outside of the syringe. Please wear gloves when removing the syringe from the packaging and during application!
Blunt needle outside diameter 1.2mm.
NLGI Grade 2.

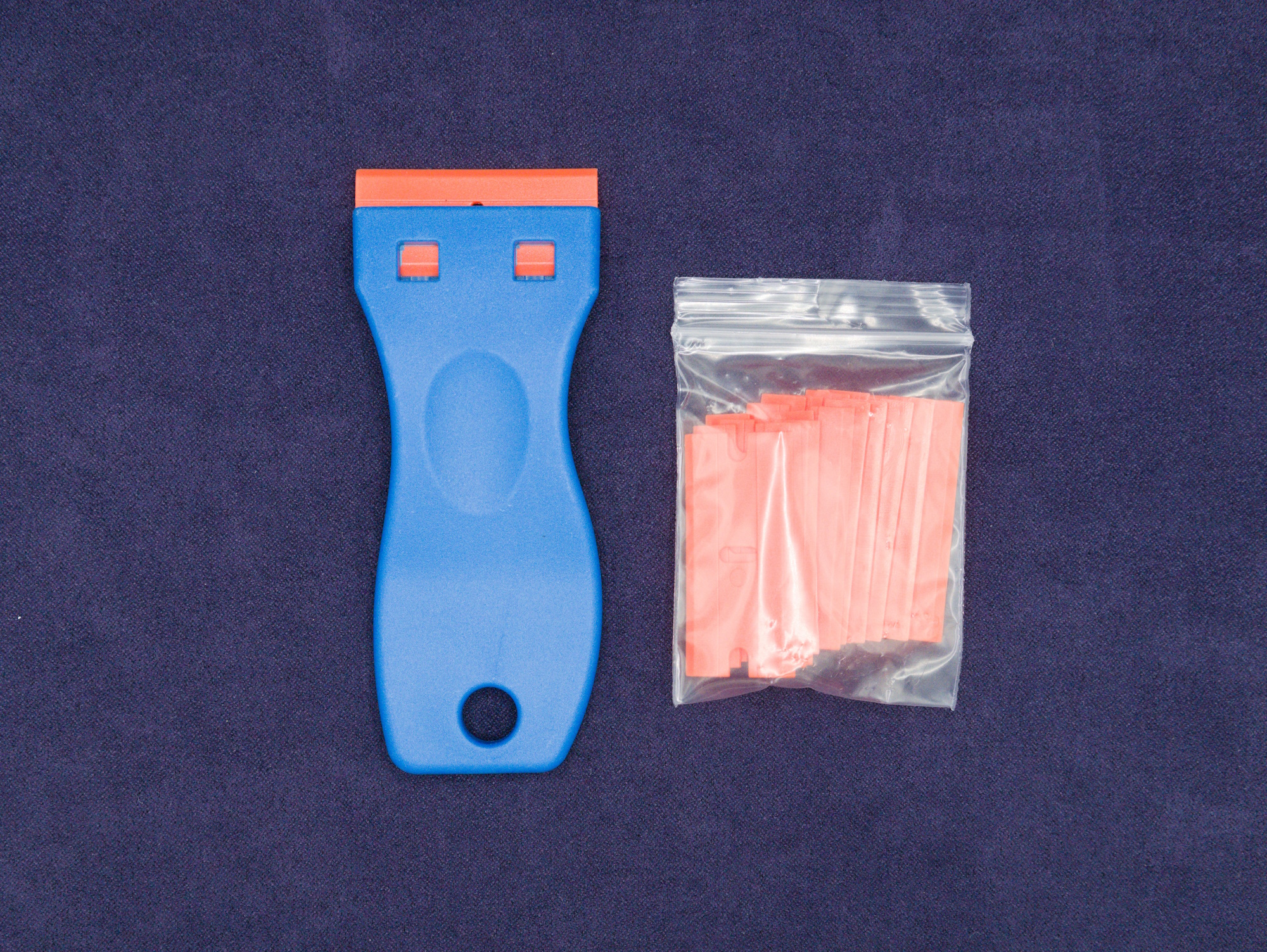

This plastic scraper is ideal to remove skirts, small parts and purge lines which you can't otherwise remove by bending your spring steel plate. The plastic blades prevent damaging your smooth PEI sheet.
