JST XH coupler, allows you to join two XH connectors together. Available in 2,3,4 and 8 pin. Manufacturer Numbers B2B-XH-TW (LF)(SN) / B3B-XH-TW (LF)(SN) / B4B-XH-TW (LF)(SN) / B8B-XH-TW (LF)(SN)
JST PH compatible connectors, 2.0mm pitch 5 PH connectors 90°, black 5 PH connector housings, black 20 PH crimp contacts
JST PH compatible connectors, 2.0mm pitch 5 PH connectors 90°, white 5 PH connector housings, white 20 PH crimp contacts
JST PH compatible connectors, 2.0mm pitch 5 PH connectors, black 5 PH connector housings, black 20 PH crimp contacts
JST XH compatible connectors, 2.5mm pitch 5 XH 90° connectors, white 5 XH connector housings, white 20 XH crimp contacts
JST XH compatible connectors, 2.5mm pitch 5 XH connectors, black 5 XH connector housings, black 20 XH crimp contacts
This small and handy PCB allows you to connect devices in parallel - no matter if they are using PH, XH, or a combination. Even right-angle connectors are supported. Note that the maximum current is 2A total. PCB Size 60x12mm, Screw Hole Distance 48mm, Mounting hole Diameter=3.2mm, max. Screw Head Size 6.4mm. If you intend to screw this onto an extrusion, make sure you use plastic spacers to prevent the pins shorting out.STL: Printable MountComplement this product with fitting XH or PH connectors

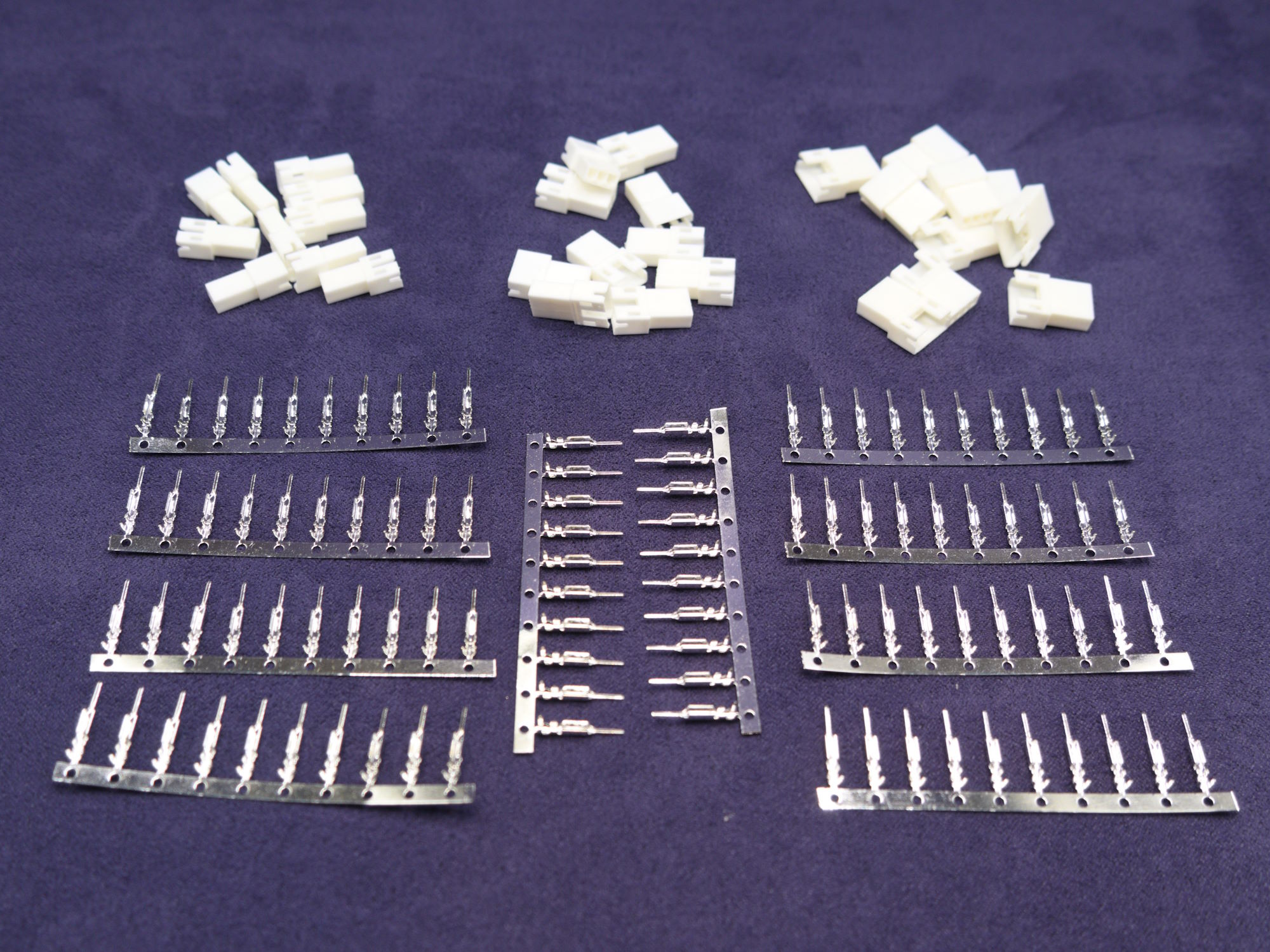

JST PH is a 2.0mm pitch connector series, used on boards like the EBB36 (for the endstops), SB2209 RP2040 and Mellow SB2040 series. Contents: 150 PH crimp contacts 10 PH Connector Housing, 2 positions 10 PH Connector Housing, 3 positions 10 PH Connector Housing, 4 positions 10 PH Connector Housing, 5 positions 10 PH PCB Connectors, 2 positions 10 PH PCB Connectors, 3 positions 10 PH PCB Connectors, 4 positions 10 PH PCB Connectors, 5 positions

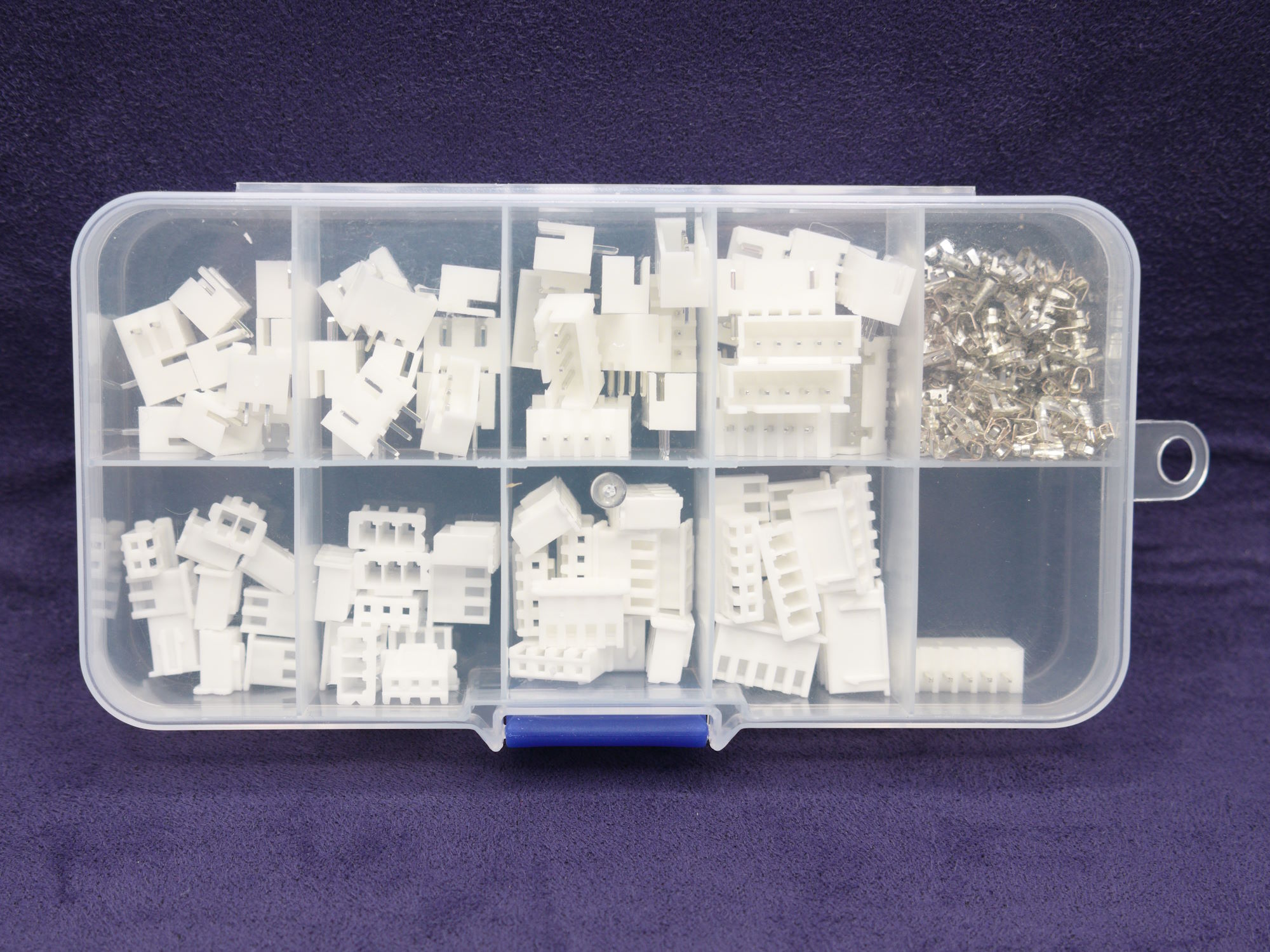

JST XH is a 2.5mm pitch connector series, used on most mainboards and the EBB36 / SHT36 toolheads. Contents: 150 XH crimp contacts 10 XH Connector Housing, 2 positions 10 XH Connector Housing, 3 positions 10 XH Connector Housing, 4 positions 10 XH Connector Housing, 5 positions 10 XH PCB Connectors, 2 positions 10 XH PCB Connectors, 3 positions 10 XH PCB Connectors, 4 positions 10 XH PCB Connectors, 5 positions
JST PH is a 2.0mm pitch connector series, used on boards like the EBB36 (for the endstops), SB2209 RP2040 and Mellow SB2040 series. JST officially does not make these extenders, but we were able to source them from 3rd party manufacturers To extend JST PH connections Contents: 10x 2 pin housing 10x 3 pin housing 10x 4 pin housing 100 crimp contacts
20 pieces MicroFit 3.0 F crimp terminals for 0.14mm²-0.07mm² wires (26-30AWG)

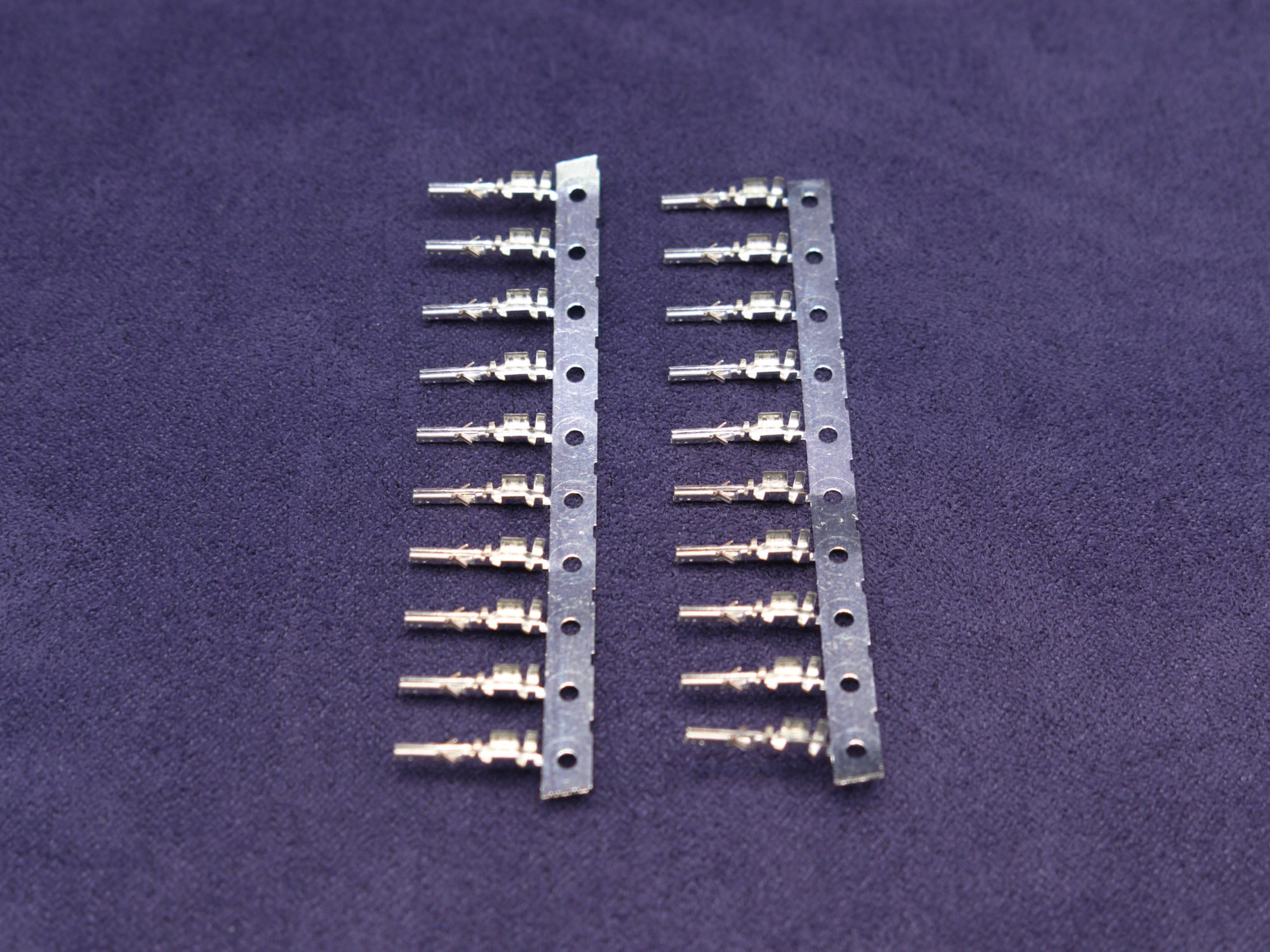

20 pieces MicroFit 3.0 F crimp terminals for 0.75mm² wires (18AWG)
20 pieces MicroFit 3.0 M crimp terminals for 0.14mm²-0.07mm² wires (26-30AWG)

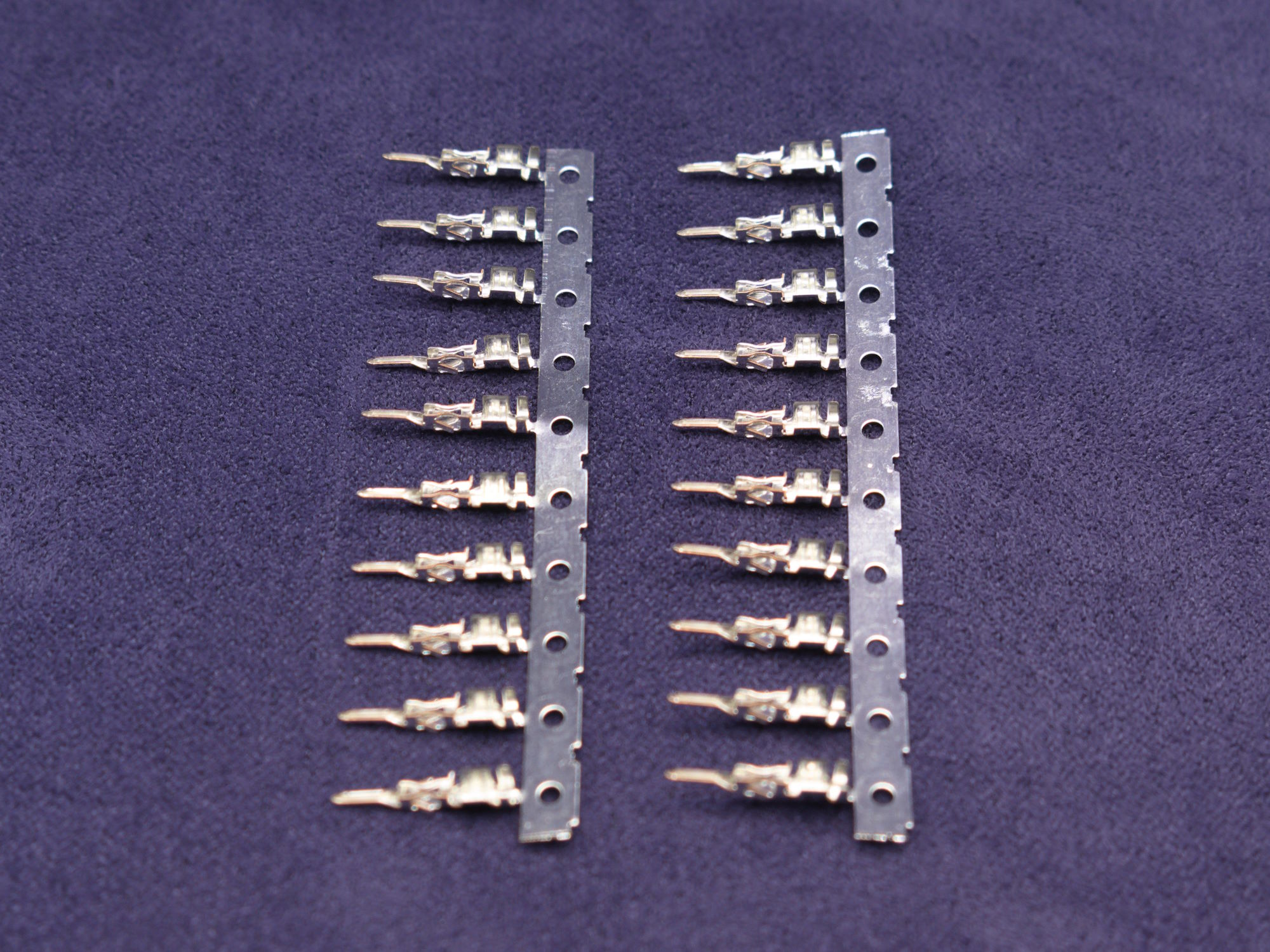

20 pieces MicroFit 3.0 M crimp terminals for 0.75mm² wires (18AWG)
1 PCB Mount Connector angled, 90 degree1 Wire Mount Connector5 Crimp ContactsIf you need the straight PCB connector instead of the 90 degree one, they are in stock - please let us know.

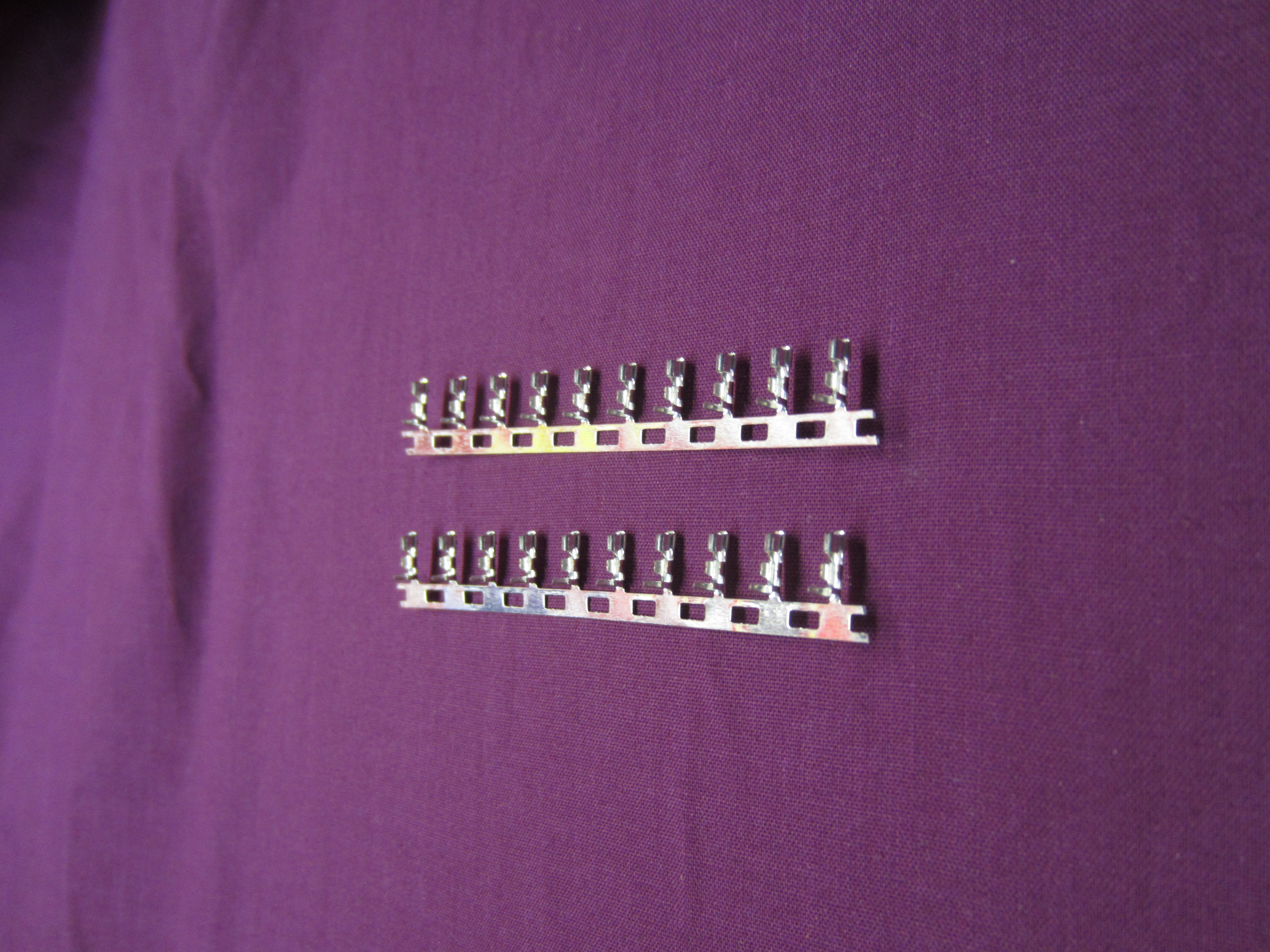

JST PH is a 2.0mm pitch connector series, used on boards like the EBB36 (for the endstops), SB2209 RP2040 and Mellow SB2040 series. 20 pcs PH 2.0-compatible Crimp Contacts

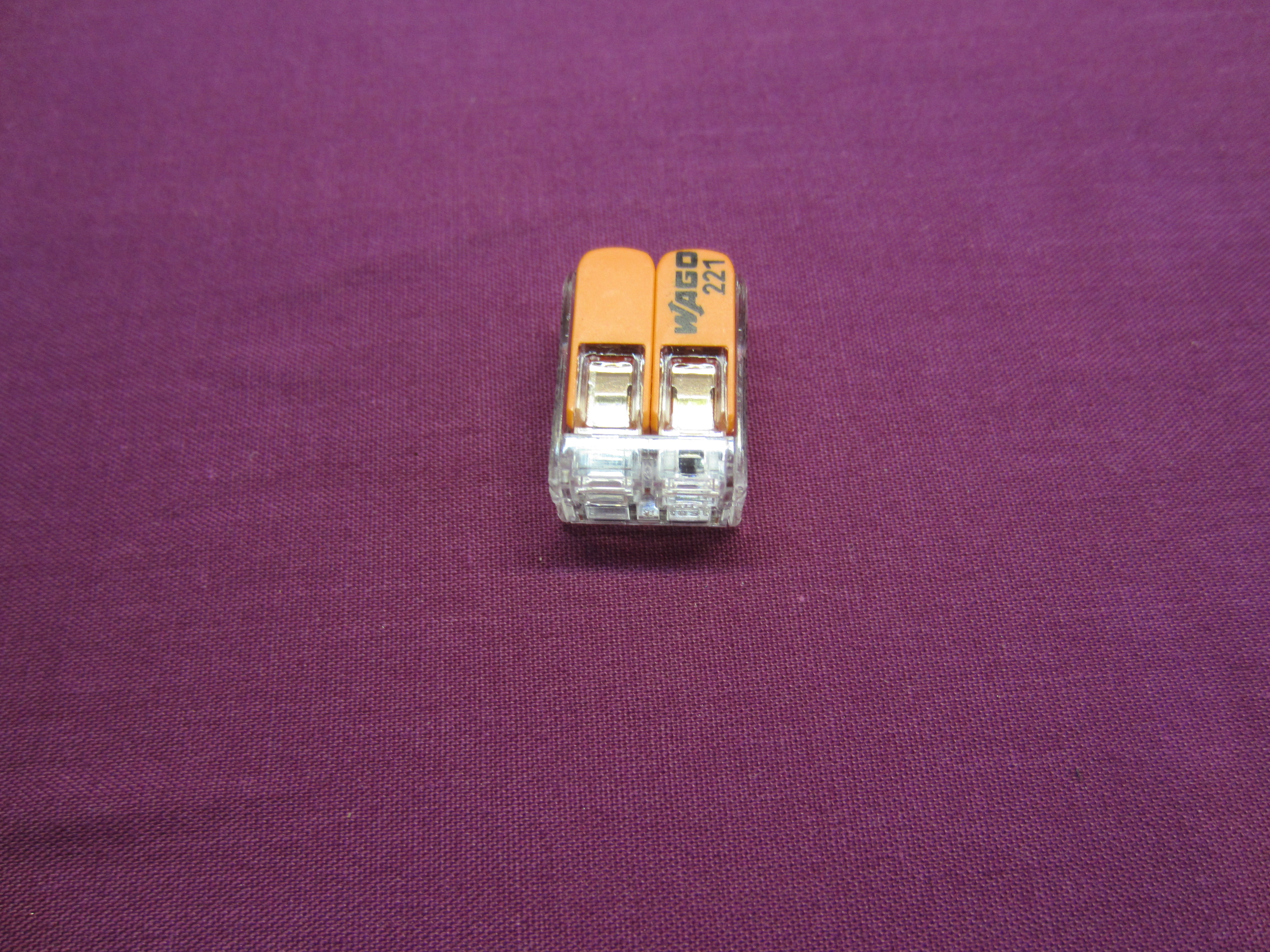

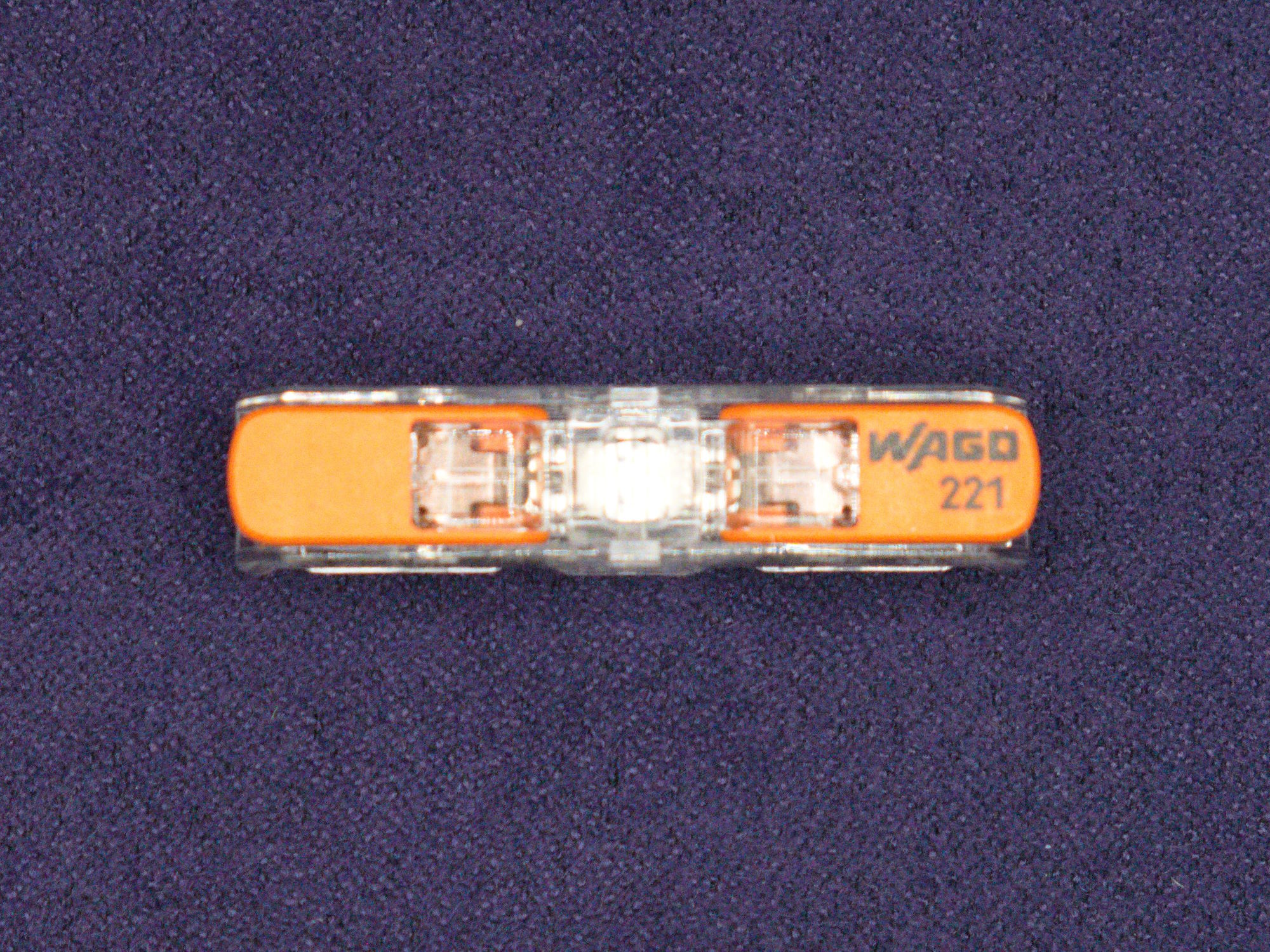

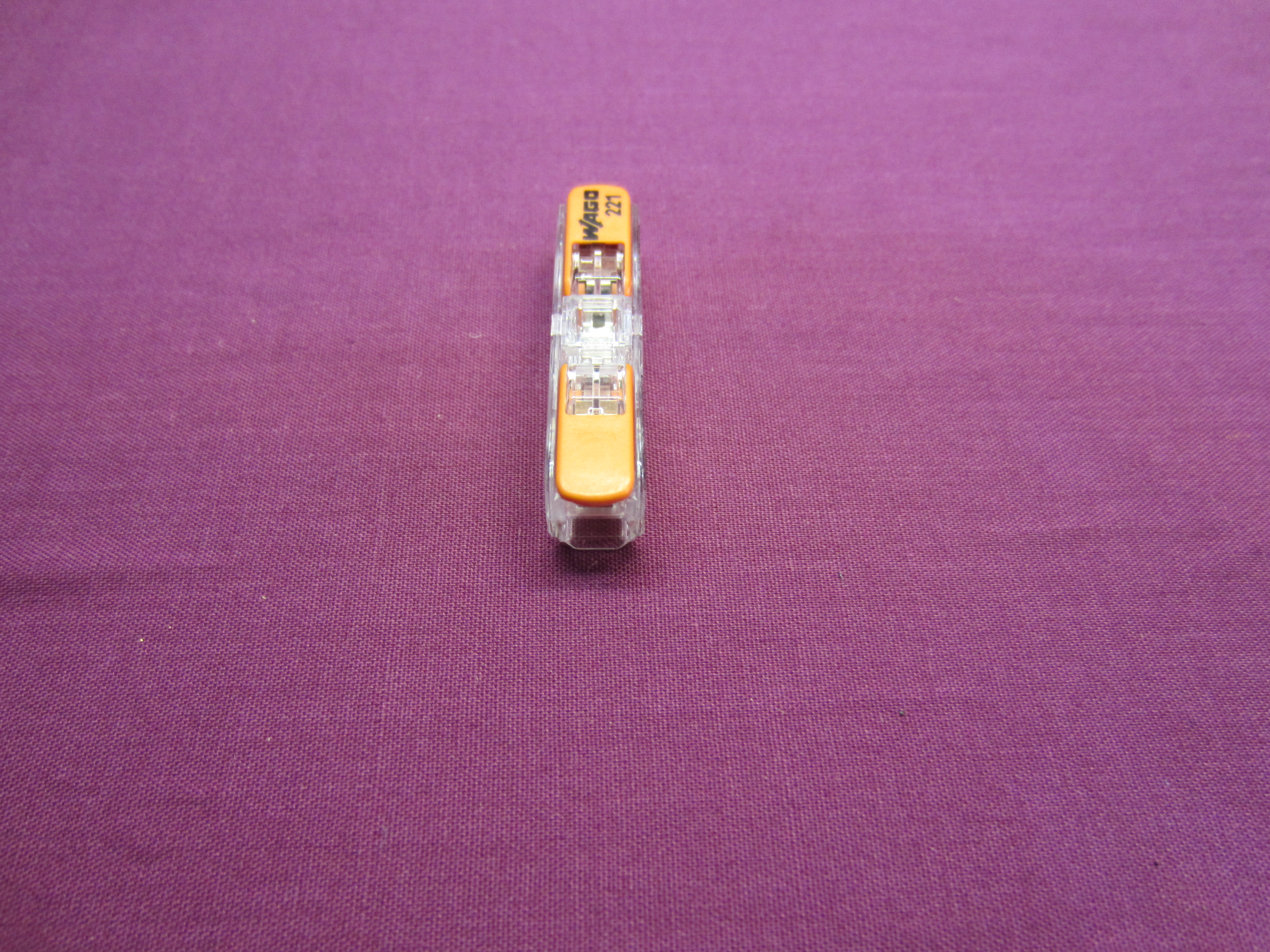

Connecting solid, stranded and fine-stranded conductors from 0.2 to 4mm² in the feedthrough directionSlim design minimizes dimensions for installation in tight spaces Tool-free connection and disconnection thanks to convenient lever technology Choosing between fixed-position installation and multi-pole installation with an adapter

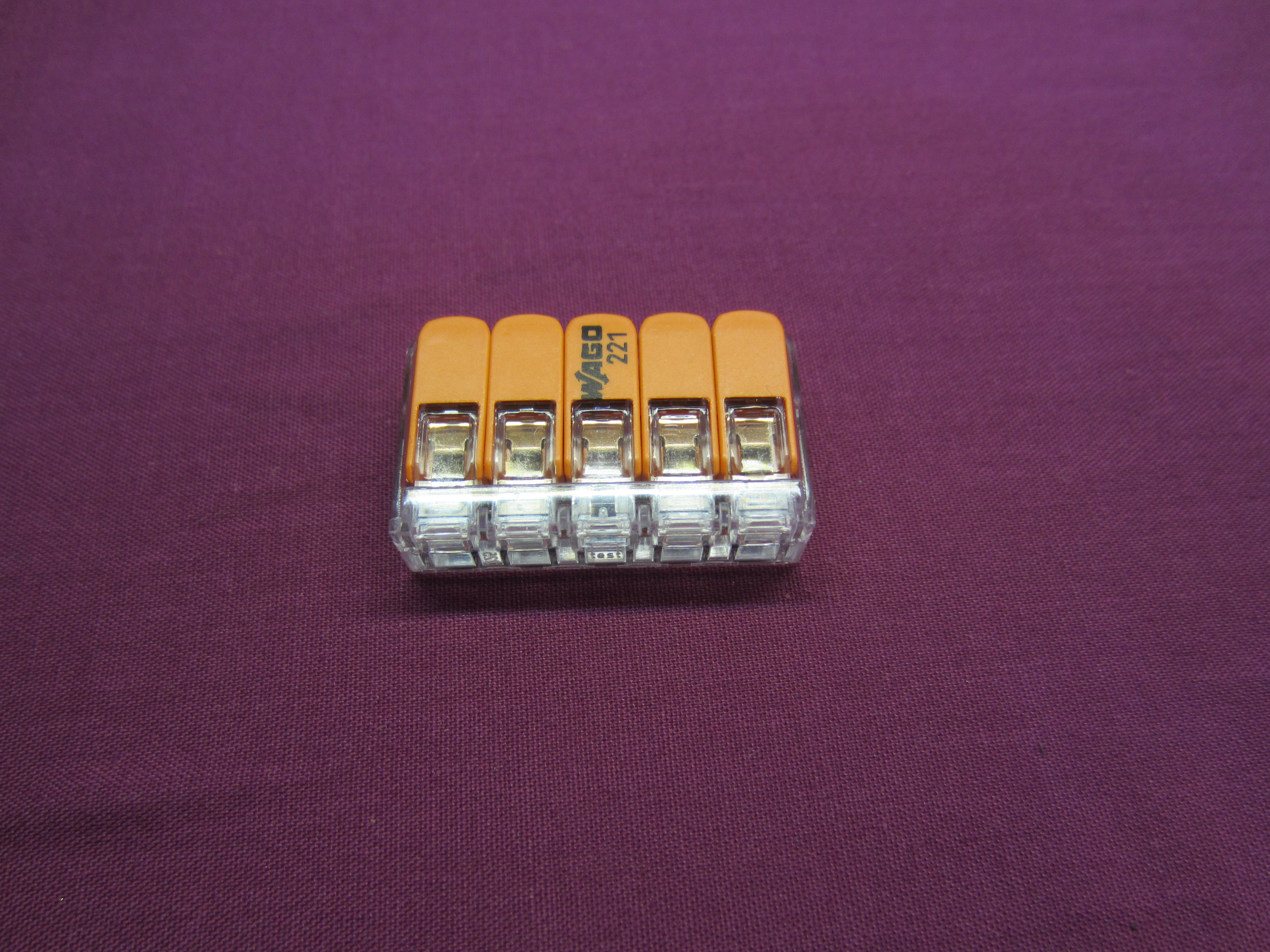

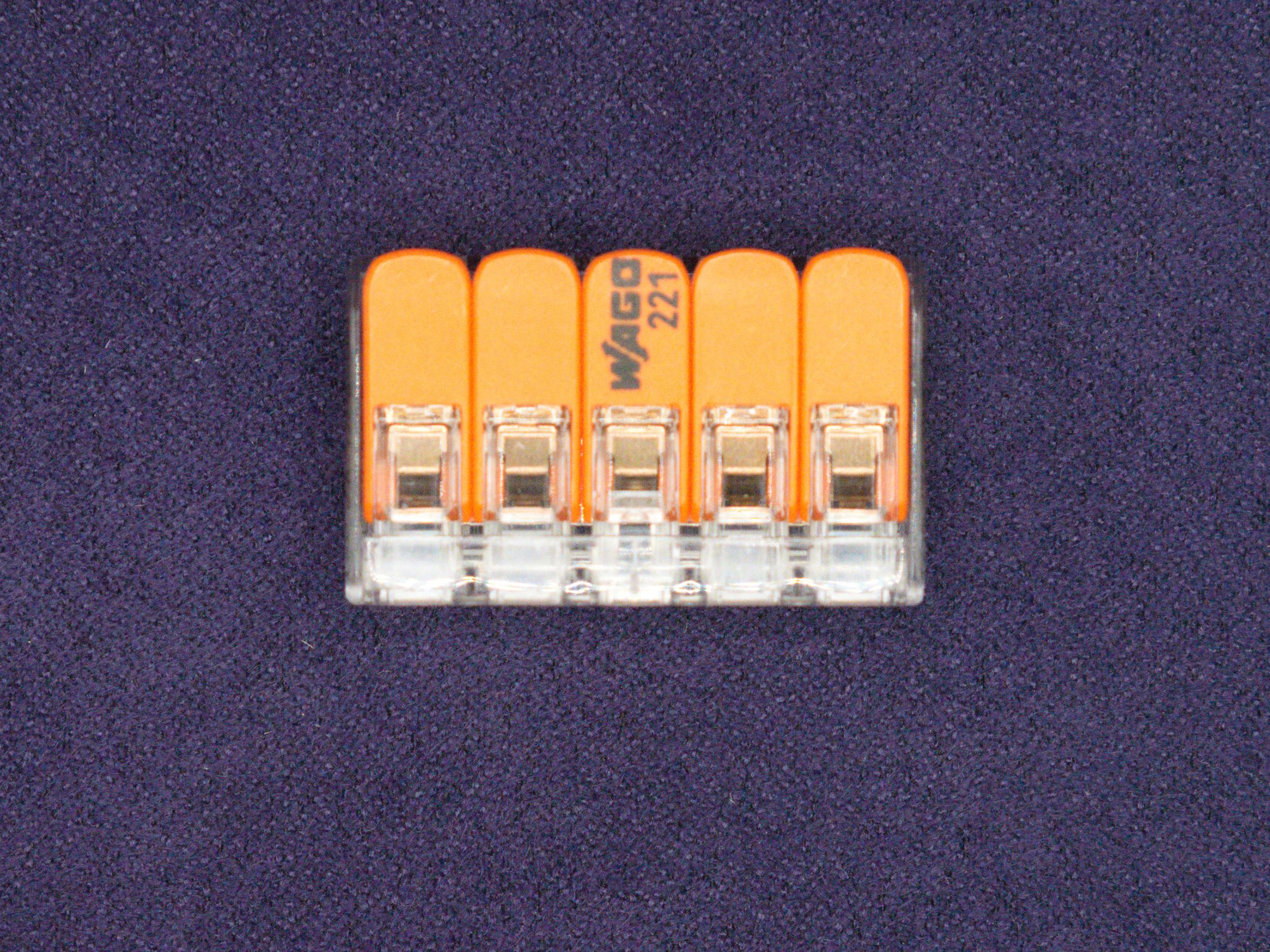

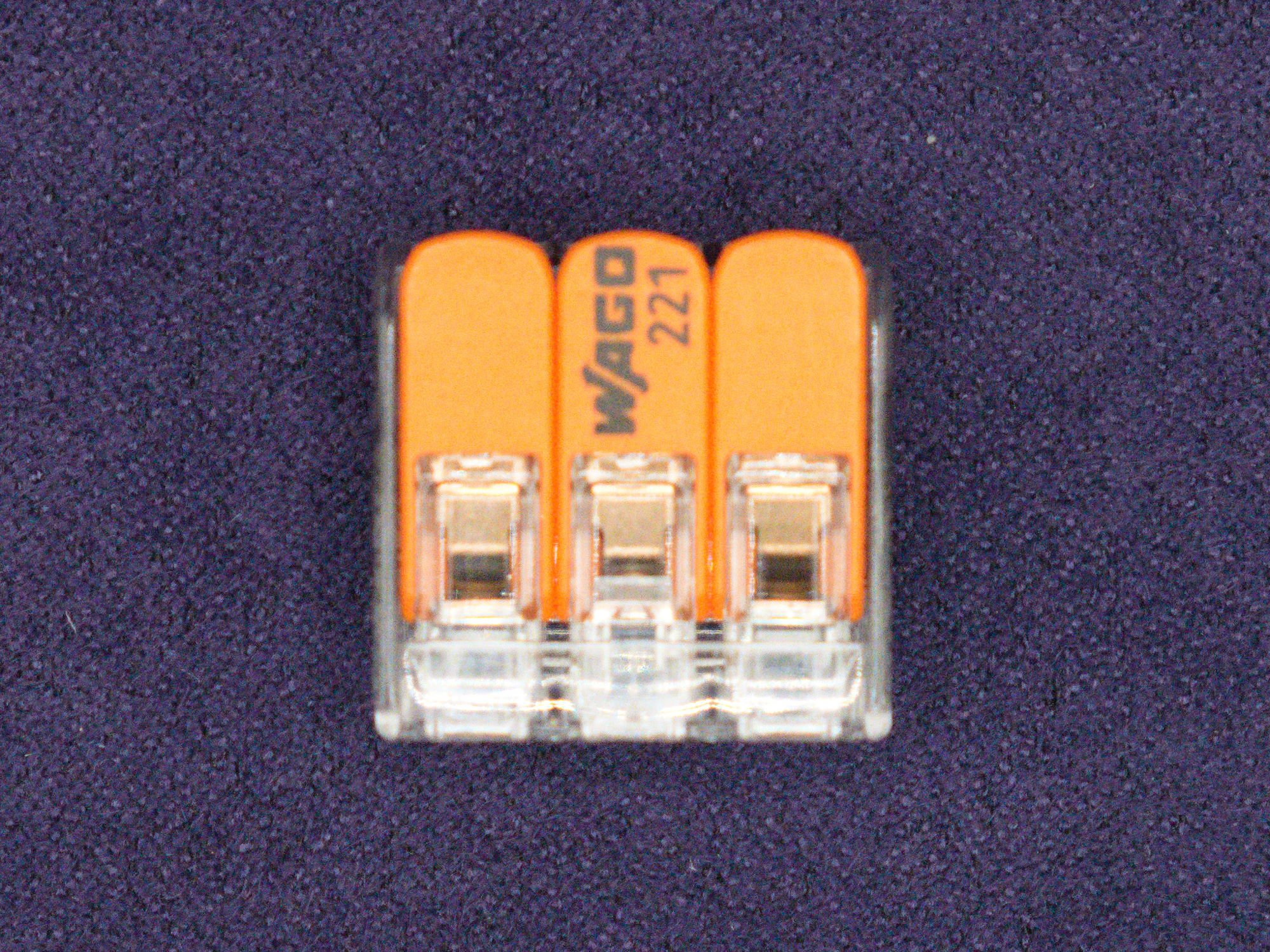

Ease of use – pull the lever up, insert a conductor and push the lever back downAvailable as 2-, 3- and 5-wire connectorsEasily terminate conductors from 0.14 to 4 mm²Connect solid, stranded and fine-stranded conductorsSave time for installers and device manufacturersQuickly install devices with higher power consumptionSafely install long cable runs with larger conductor cross sectionsMounting carrier for installation conforms to standards Custom carriers are possible
Ease of use – pull the lever up, insert a conductor and push the lever back downAvailable as 2-, 3- and 5-wire connectorsEasily terminate conductors from 0.14 to 4 mm²Connect solid, stranded and fine-stranded conductorsSave time for installers and device manufacturersQuickly install devices with higher power consumptionSafely install long cable runs with larger conductor cross sectionsMounting carrier for installation conforms to standards Custom carriers are possible
Ease of use – pull the lever up, insert a conductor and push the lever back downAvailable as 2-, 3- and 5-wire connectorsEasily terminate conductors from 0.14 to 4 mm²Connect solid, stranded and fine-stranded conductorsSave time for installers and device manufacturersQuickly install devices with higher power consumptionSafely install long cable runs with larger conductor cross sectionsMounting carrier for installation conforms to standards Custom carriers are possible

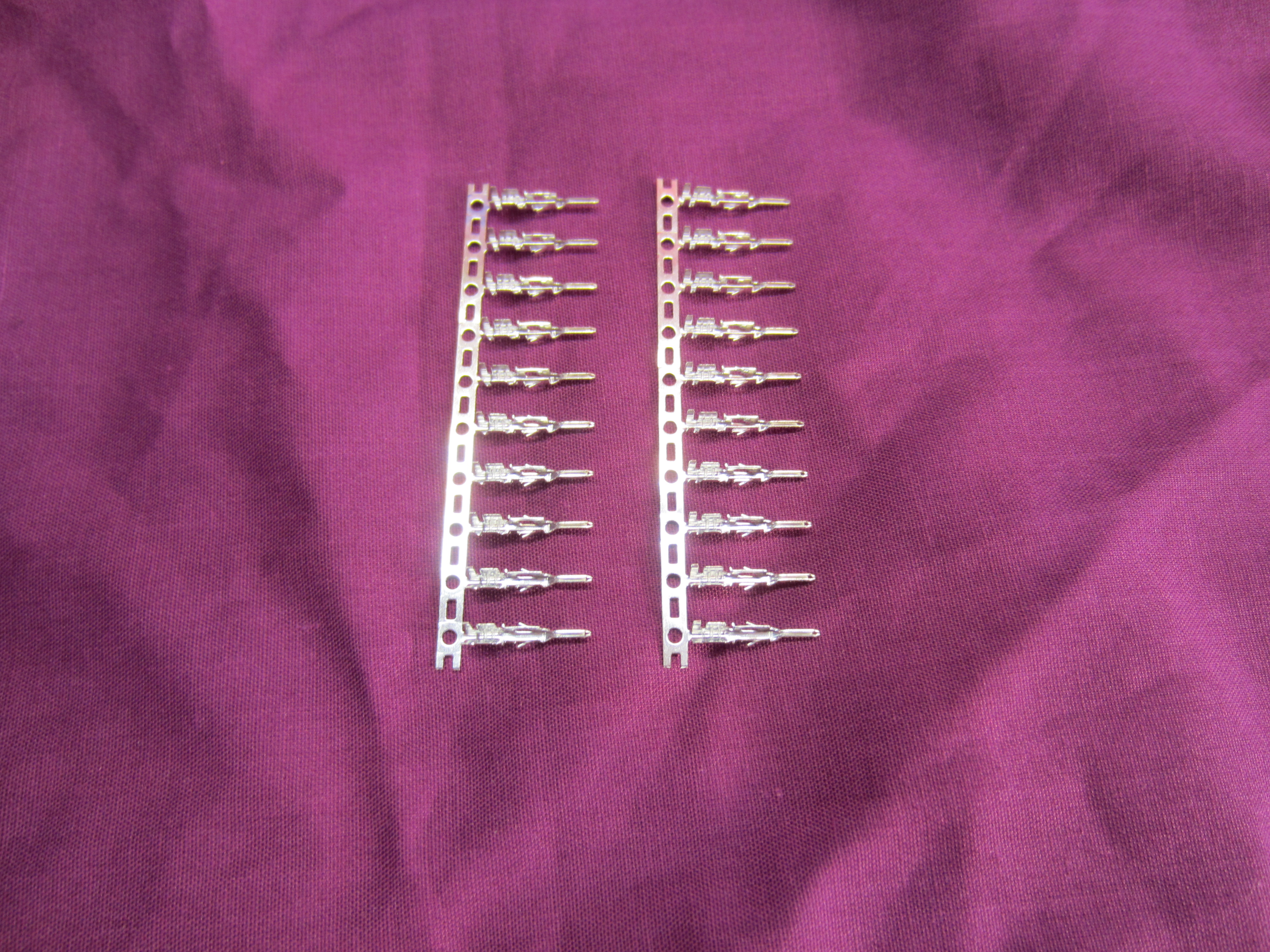

20 pcs MicroFit 3.0-compatible Crimp Contacts Male, 0.25mm² - 0.5mm² (20-24AWG)

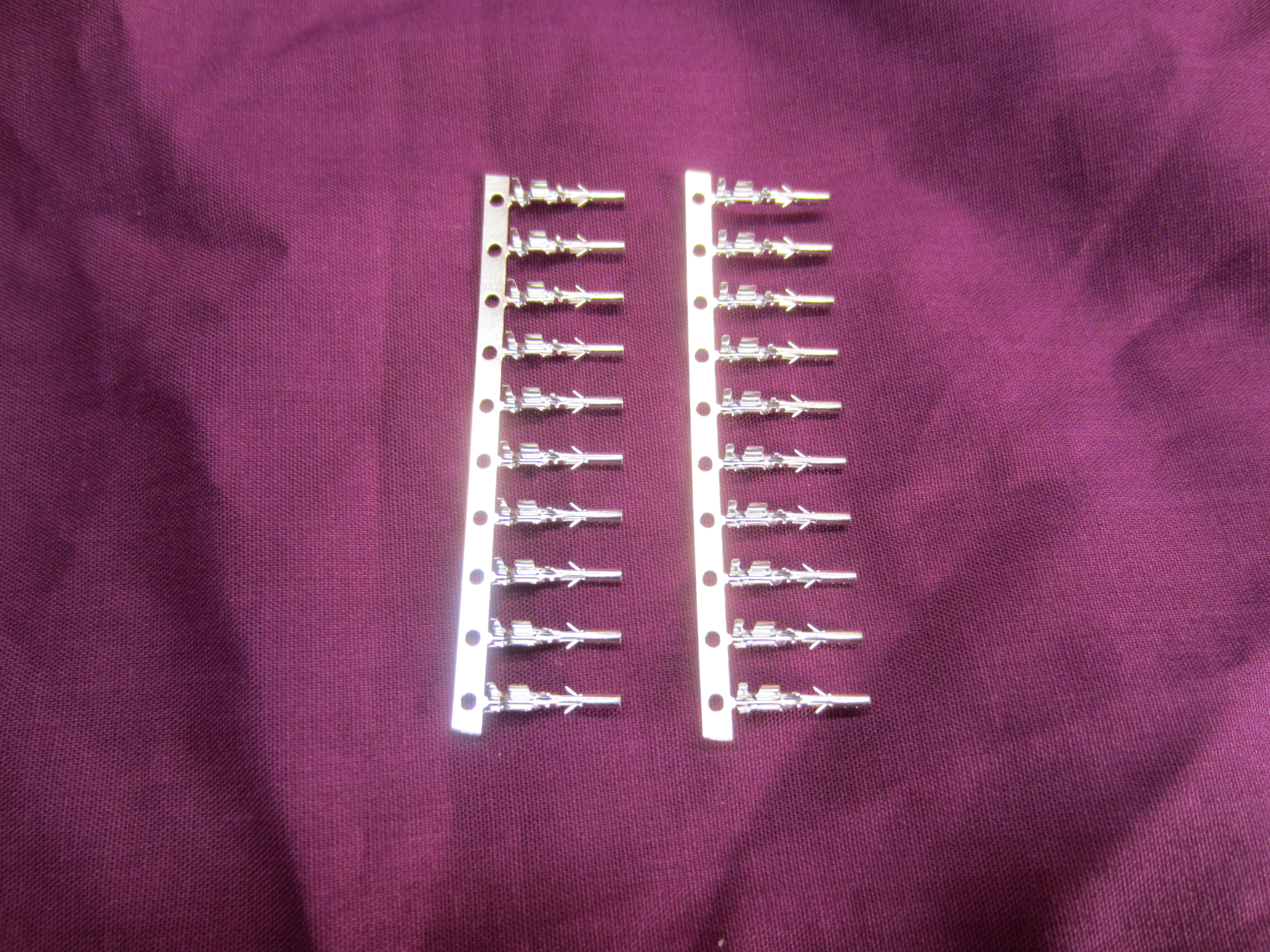

20 pcs MicroFit 3.0-compatible Crimp Contacts Female, 0.25mm² - 0.5mm² (20-24AWG)

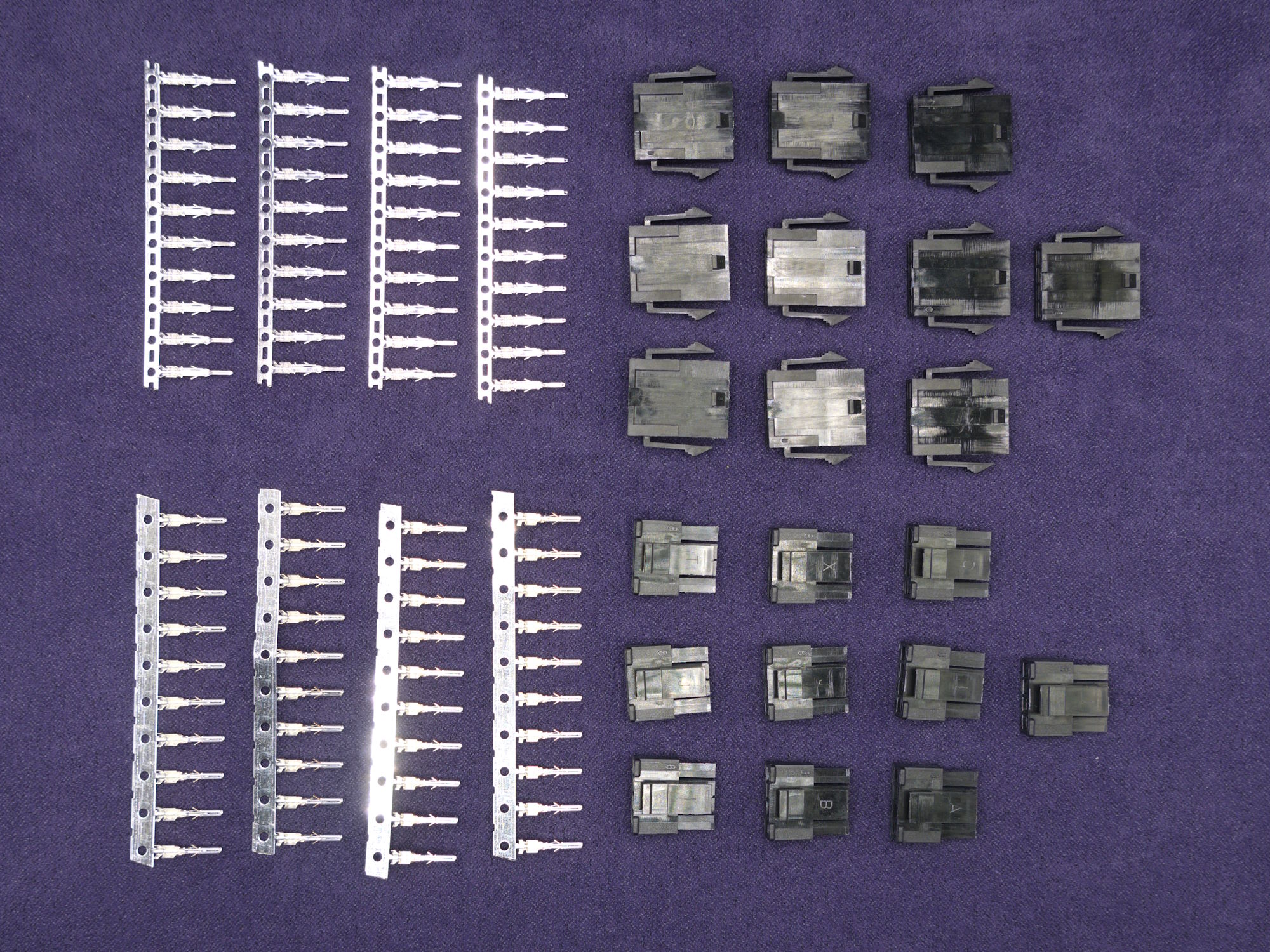

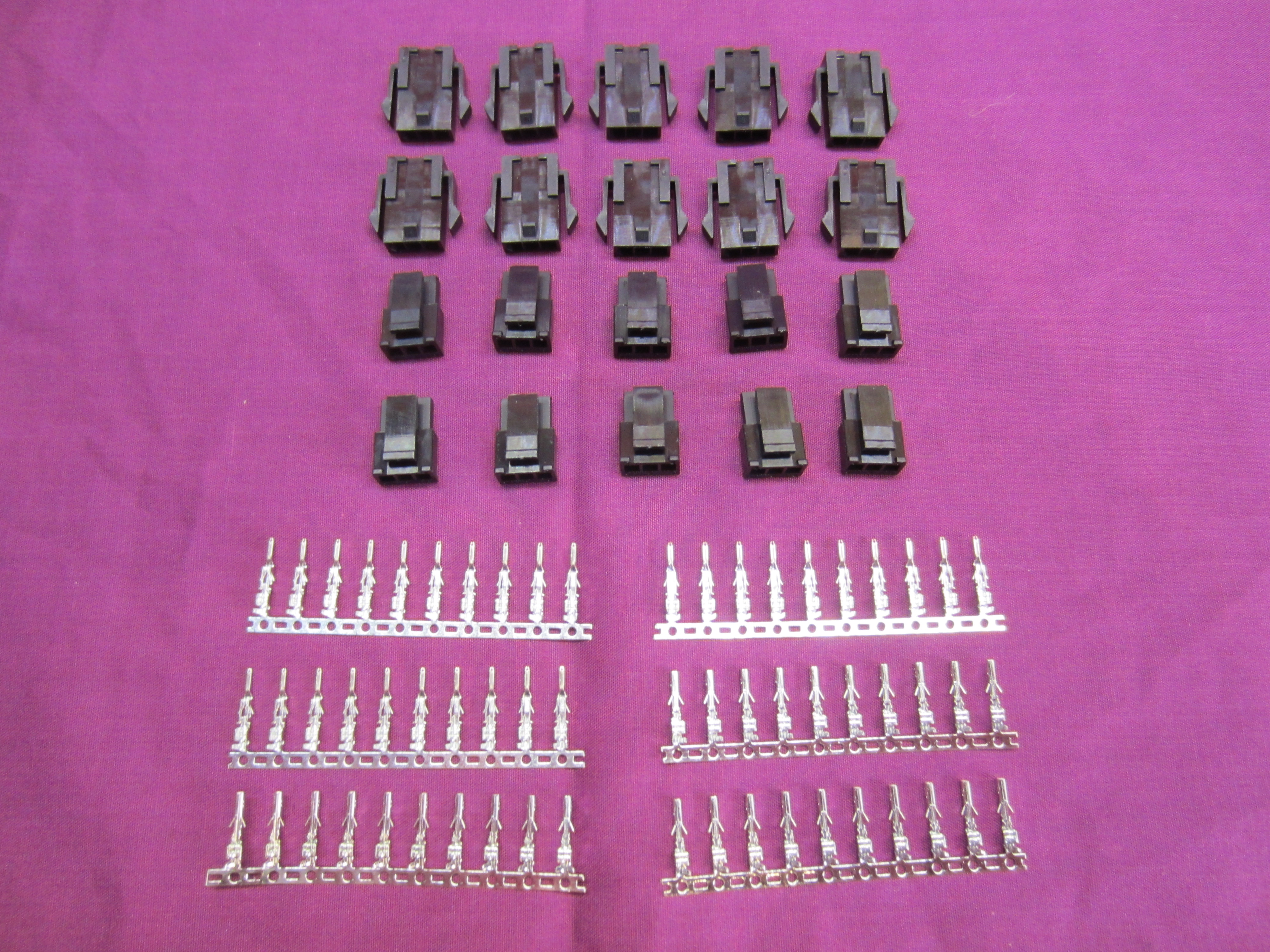

10 pcs MicroFit 3.0 compatible plug, 4 pin 10 pcs MicroFit 3.0 compatible receptacle, 4 pin40 pcs MicroFit 3.0 plug contacts40 pcs MicroFit 3.0 receptacle contacts Crimp contacts are suitable for 0.25mm² - 0.5mm² (20-24AWG) You can cut off the "wings" with a flush sidecutter if you want to save some space, for example, inside of the StealthBurner cable cover.
