40x40x28mm fan for use in the Nevermore Mini. Extremely powerful fan which can be controlled via the PWM pin down to sub-10%. The performance of this fan is extremely high, so is it's noise, hence "The Monster". Mount the fan prior turning it on, it will probably jump at you. This fan is loud, fast and draws 3A at full speed. Using a standard fan output on your controller will probably kill the output, use an appropriate output like a spare hotend output.The datasheet can be found here.Pin Mapping:Red+Black-YellowTachometerBluePWM controlPWM control follows the standard Intel Spec (5V pullup, 25kHz signal). If no signal is given via the PWM input, the fan will run at full speed. Relevant config options for Klipper:tachometer_pin: # Set to the pin you like to use. Make sure it has either a hardware or software pullup
tachometer_ppr: 2
tachometer_poll_interval: 0.001
cycle_time: 0.00004
hardware_pwm: true # Hardware PWM is preferred if your board is capable of it
Technical data:Operational Voltage (nominal)12VRotational Speed30000 RPMAir Flow1 m³/min (35cfm, 60m³/h)Static Pressure5.88 inAQNoise Level66dBCurrent3000mA

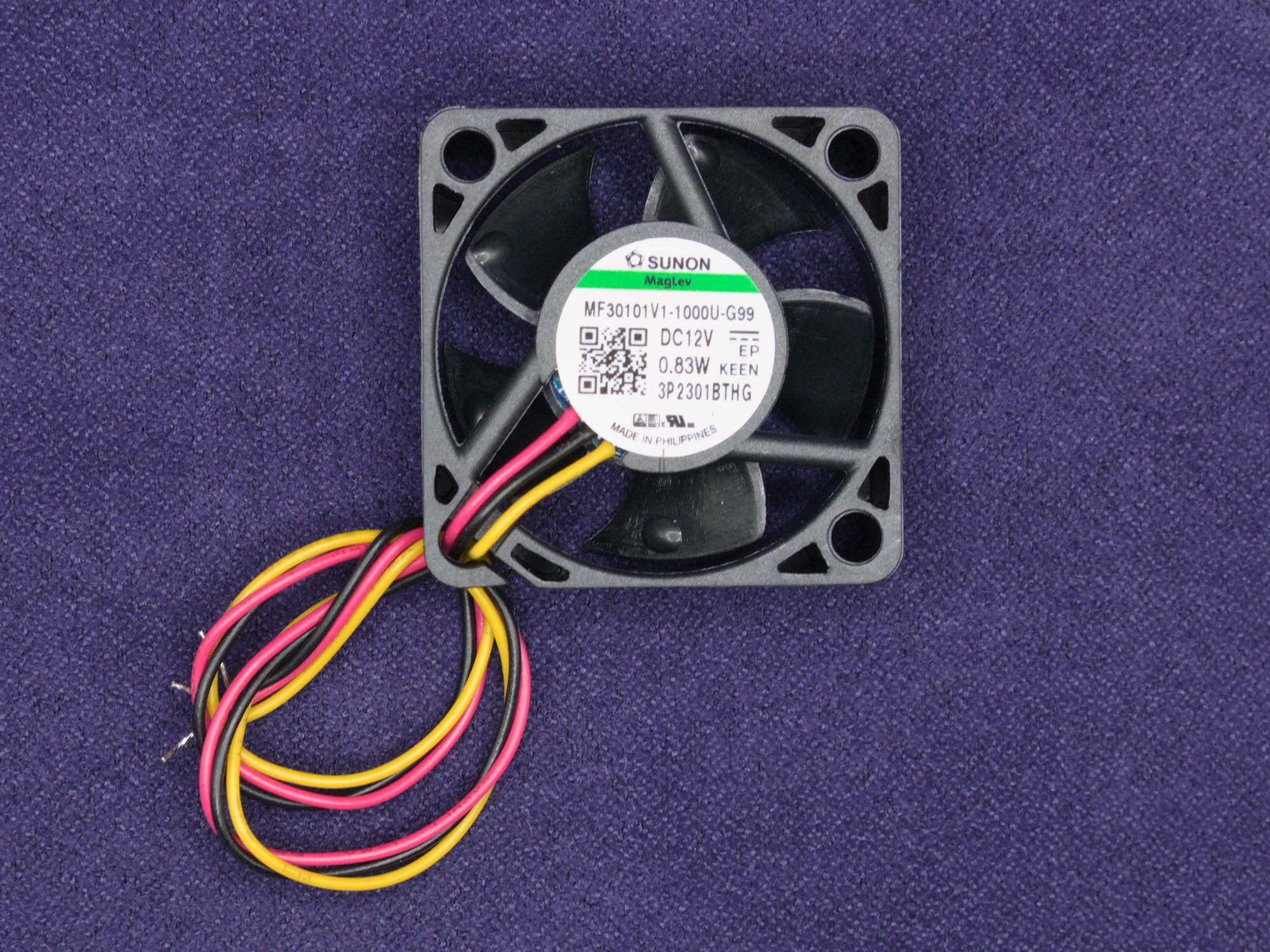

Sunon MF30101V1-1000U-G99 with tachometer output.
Comes with an 1N4148 diode and instructions for the tachometer open collector output.
Every fan is padded with some bubble wrap for additional protection during shipping.
The small blobs on the fan are for imbalance compensation and are not a manufacturing defect!
Technical data:
Operational Voltage (nominal)
12V
Rotational Speed
11500 RPM
Air Flow
0.16 m³/min (5.5cfm, 9.6m³/h)
Static Pressure
0.25 in H2O
Noise Level
23.0dB
Current
0.55mA
40x40x28mm fan for use in the Nevermore Mini. Very powerful fan which can be controlled via the PWM pin down to sub-10%.
Pin Mapping:
Red
+
Black
-
Yellow
Tachometer
Blue
PWM control
PWM control follows the standard Intel Spec (5V pullup, 25kHz signal). If no signal is given via the PWM input, the fan will run at full speed. Relevant config options for Klipper:
tachometer_pin: # Set to the pin you like to use. Make sure it has either a hardware or software pullup
tachometer_ppr: 2
tachometer_poll_interval: 0.001
cycle_time: 0.00004
hardware_pwm: true # Hardware PWM is preferred if your board is capable of it
Technical data:
Operational Voltage (nominal)
12V
Rotational Speed
13000 RPM
Air Flow
0.58 m³/min (20.5cfm, 34.8m³/h)
Static Pressure
0.86 in H2O
Noise Level
44.5dB
Current
400mA
Orion OD4010-24HB01A with tachometer output, suitable as StealthBurner Hotend Fan
Comes with an 1N4148 diode and instructions for the tachometer open collector output.
Every fan is padded with some bubble wrap for additional protection during shipping.
Technical data:
Operational Voltage (nominal)
24V
Rotational Speed
8000 RPM
Air Flow
0.263 m³/min (9.3cfm, 15.8m³/h)
Static Pressure
0.20 in H2O
Noise Level
33.4dB
Current
60mA
Note that due to supply chain shortages we sometimes ship the BFB0405HHA-AF00 instead. The replacement specifications are identical apart from having an additional tachometer output. You can simply cut the third wire and not use it.
Operational Voltage
5V
Rated Current
160mA
Rated Speed
8500 RPM +-15%
Air Flow
3.0cfm (5.1m³/h, 0.085m³/min)
Static Pressure
0.564 inH2O (14.33 mmH2O)
Acoustic Noise
34.5 dB(A)
Relevant config options for Klipper:
tachometer_pin: # Set to the pin you like to use. Make sure it has either a hardware or software pullup
tachometer_ppr: 2
tachometer_poll_interval: 0.0009
Technical data:
Operational Voltage
5V
Rated Current
120mA
Rated Speed
15000 RPM +-15%
Air Flow
4.31cfm (7.32m³/h, 0.122m³/min)
Static Pressure
0.32 inH2O (8.13 mmH2O)
Acoustic Noise
31 dB(A)
1N4148 diode is included.
Operational Voltage
12V
Rated Current
80mA
Rated Speed
8500 RPM +-15%
Air Flow
3.0cfm (5.1m³/h, 0.085m³/min)
Static Pressure
0.564 inH2O (14.33 mmH2O)
Acoustic Noise
34.5 dB(A)
Note: photo shows the -A117 variant with 60mm cable, the -A variant we deliver is with ~150mm cable
Gdstime 5015 Blower Fan, very well suited for the Stealthburner. Model Number GDB5015.
This is the high speed variant! It is louder and can potentially produce more vibrations than the regular 6000 RPM variant, but it has a higher airflow and can overcome a higher static pressure. Also the startup-time is considerably quicker.
Dual Ball Bearing, 24V, 140mA, 8500 RPM, 5.53 cfm, 48.6dB(a), 1.42 InH2O
High performance fan by Delta, perfect for use in the Stealthburner.Operational Voltage (nominal)24VRotational Speed6500 RPMAir Flow0,13m³/min ( 4,59 cfm)Static Pressure22mmH2O (0,866 IN H2O)Noise45 dB(A)

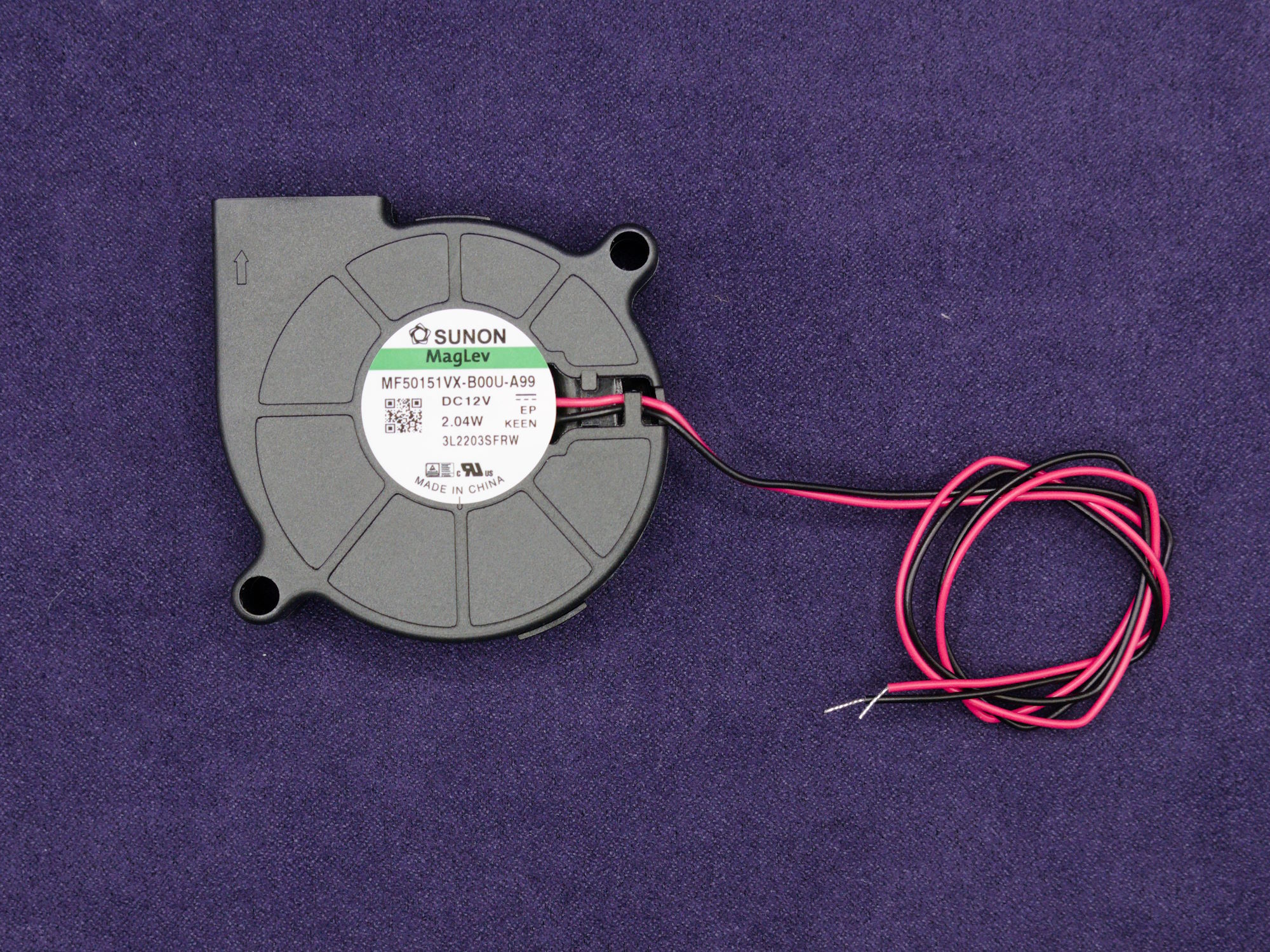

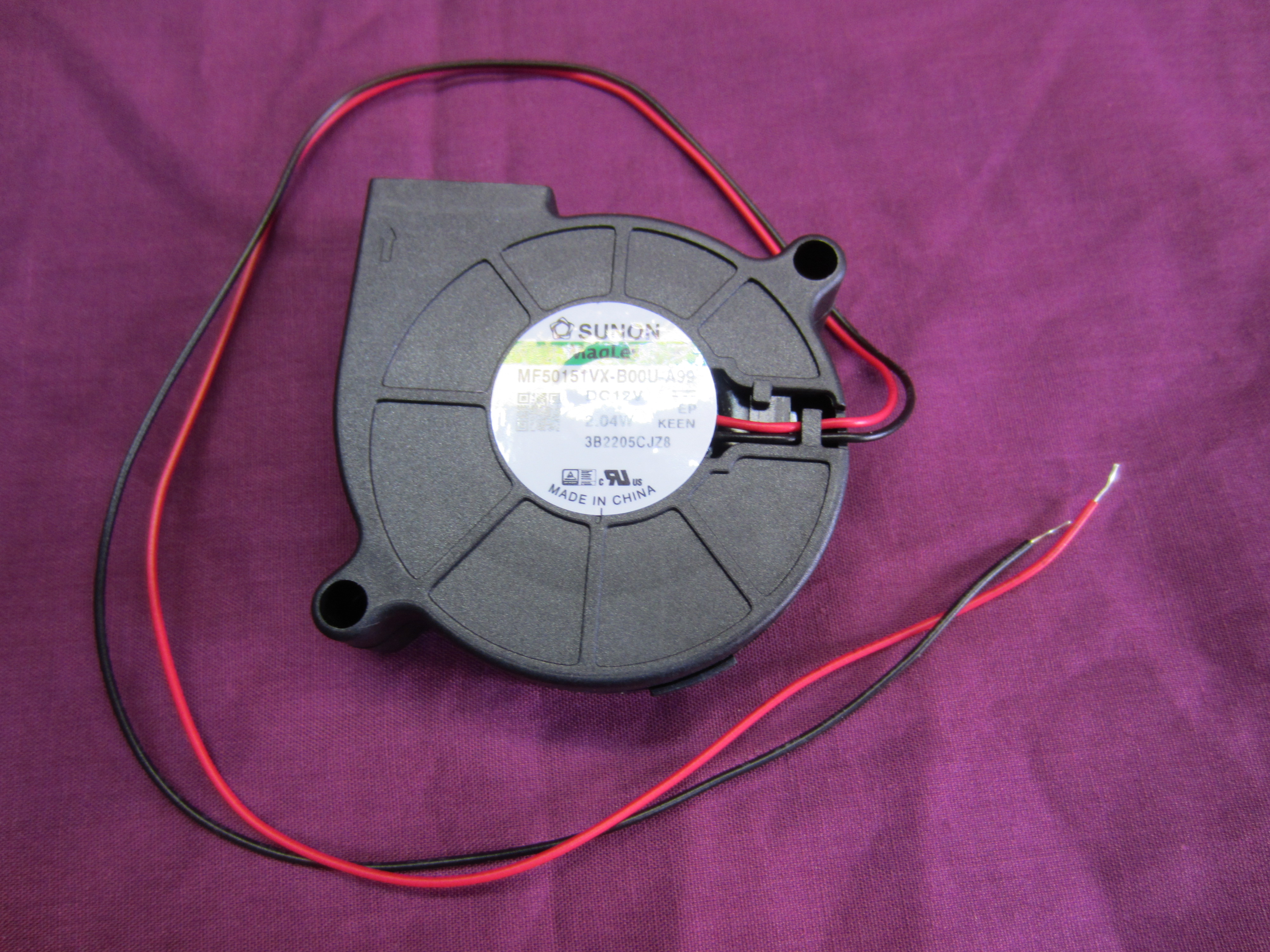

Sunon MF50151VX-B00U-A99, 12V, 9.18m³/h (5.4cfm), 6000 RPM, 42.2dB(A), 170mA, 0.97inH2O (24.64 mm H2O).
Note: Sunon A99 fans aren't PWM controllable in many cases - if in doubt, consider them as "on" / "off" only.
Can be used for Nevermore Micro v5 or for bed fan projects.

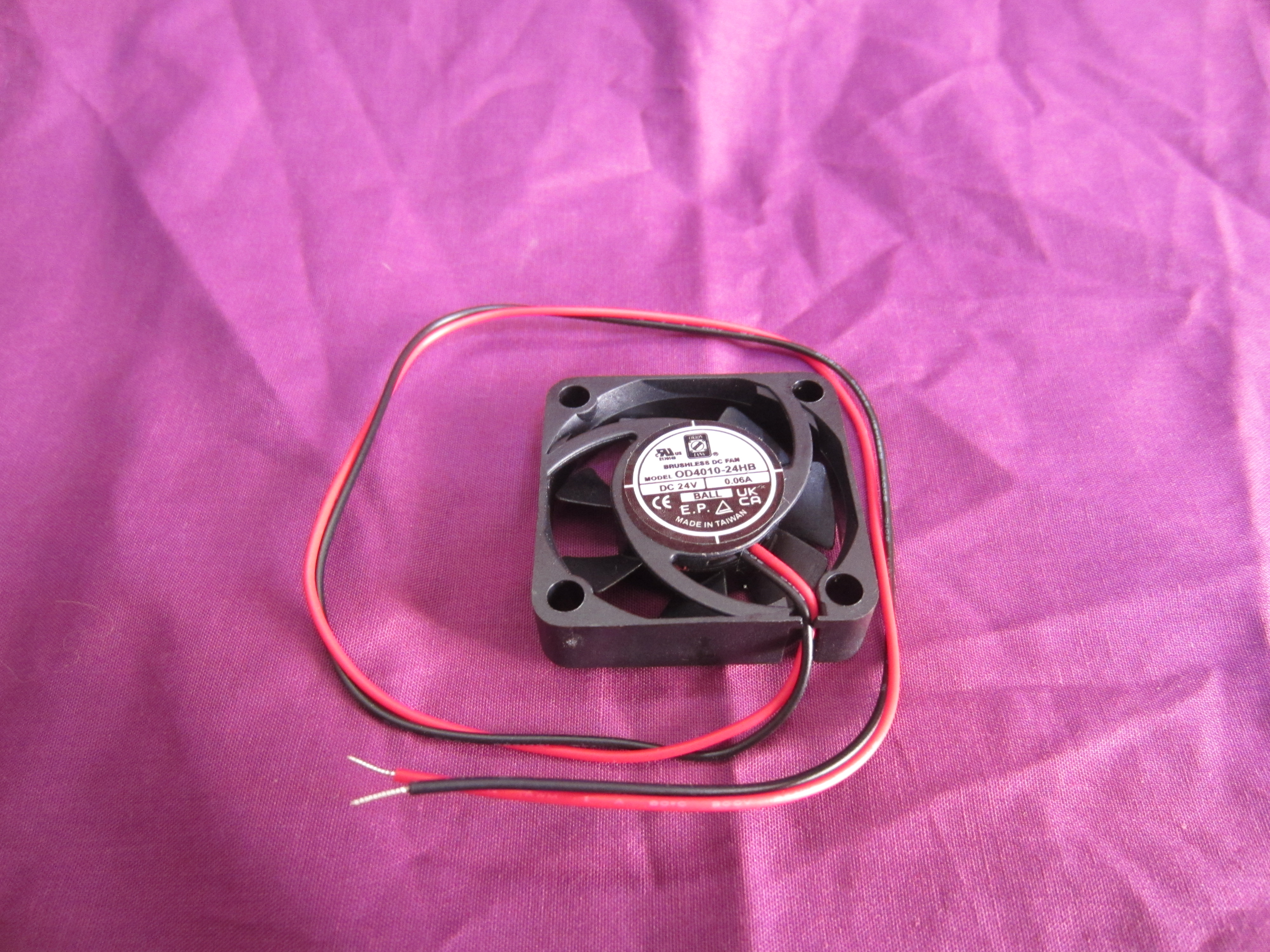

Orion OD4010-24HB, suitable as StealthBurner Hotend FanEvery fan is padded with some bubble wrap for additional protection during shipping.Technical data:Operational Voltage (nominal)24VRotational Speed8000 RPMAir Flow0.263 m³/min (9.3cfm, 15.8m³/h)Static Pressure0.20 in H2ONoise Level33.4dBCurrent60mA

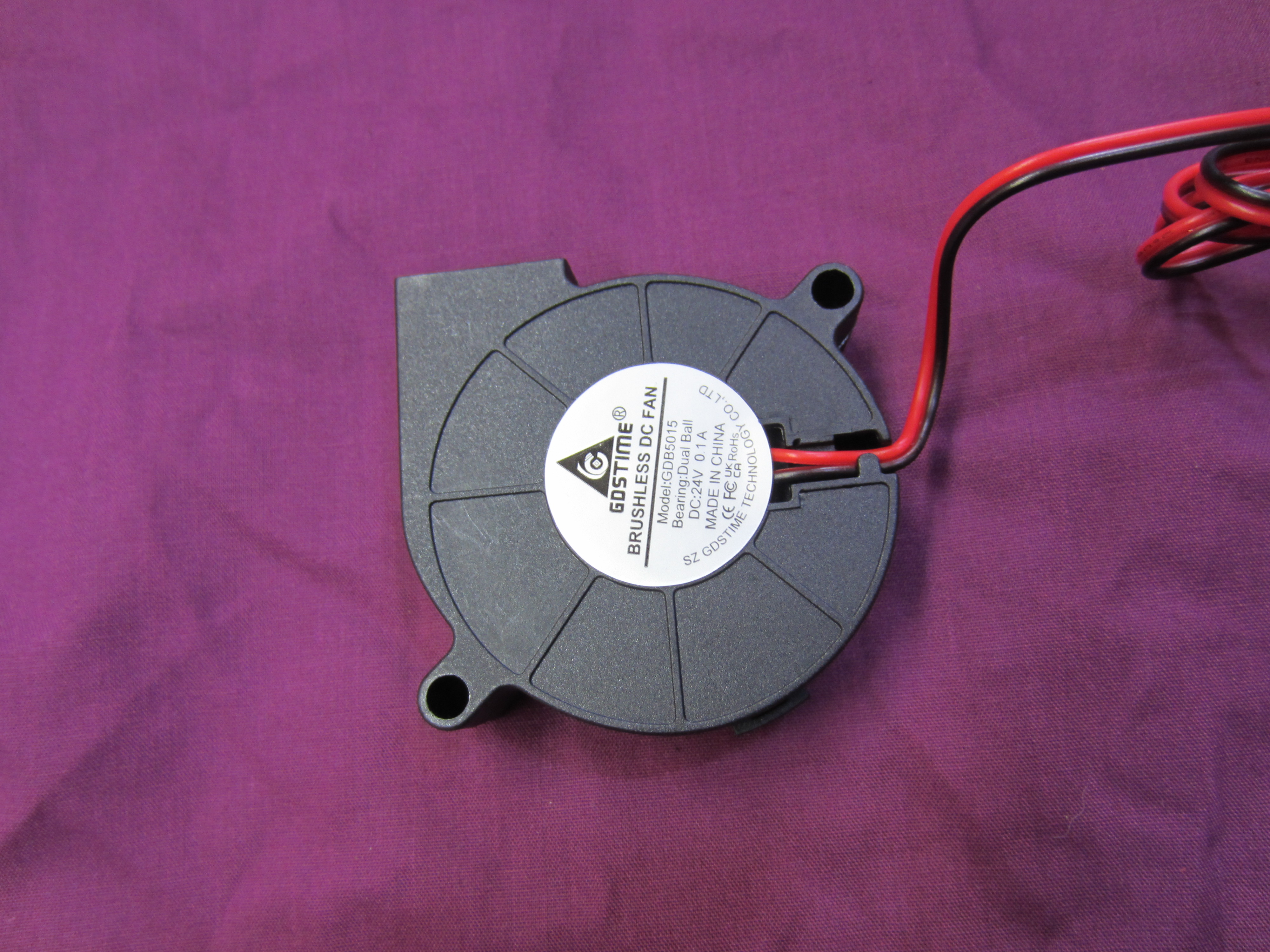

Gdstime 5015 Blower Fan, very well suited for the Stealthburner. Model Number GDB5015.
Dual Ball Bearing, 24V, 100mA, 6000 RPM, 5.36 cfm, 38.7dB(a), 1.21 InH2O
€10.99*
