Voron OptoTap PCB v2.4.1 5-24V OPB666N
Product information "Voron OptoTap PCB v2.4.1 5-24V OPB666N"
The new and fixed revision of the Voron OptoTap PCB v2.4.1, operates between 5 and 24V.
Comes with the Optek OPB666N
Screw Kit for the Voron Tap, including 2x N52 magnets.
Note: The M3x6 FHCS screws are NOT V2A but zinc coated steel, because they need to be magnetic.
Note: We add at least one screw, nut, washer or insert per BOM line so that you don't need to worry if one drops on the floor.
Bill of Materials (spares indicated by (+1)):
Qty
Part
11 (+1)
Heatset Insert M3x5x4
1 (+1)
M3 Nut
6 (+1)
M3 Washer
2 (+1)
M3x20 SHCS, V2A
2 (+1)
M3x16 SHCS, V2A
1 (+1)
M3x12 SHCS, V2A
3 (+1)
M3x08 SHCS, V2A
1 (+1)
M3x06 SHCS, V2A
2 (+1)
M3x06 FHCS, Zinc Coated, Ferromagnetic
2 (+1)
M3x10 BHCS, V2A
10 (+1)
M3x06 BHCS, V2A
Screw Kit for the Voron Tap, including 2x N52 magnets.
Note: We add at least one screw, nut, washer or insert per BOM line so that you don't need to worry if one drops on the floor.
Bill of Materials (spares indicated by (+1)):
Qty
Part
11 (+1)
Heatset Insert M3x5x4
1 (+1)
M3 Nut
6 (+1)
M3 Washer
2 (+1)
M3x20 SHCS, Steel 8.8 Black
2 (+1)
M3x16 SHCS, Steel 8.8 Black
1 (+1)
M3x12 SHCS, Steel 8.8 Black
3 (+1)
M3x08 SHCS, Steel 8.8 Black
1 (+1)
M3x06 SHCS, Steel 8.8 Black
2 (+1)
M3x06 FHCS, Steel 8.8 Black
2 (+1)
M3x10 BHCS, Steel 8.8 Black
10 (+1)
M3x06 BHCS, Steel 8.8 Black

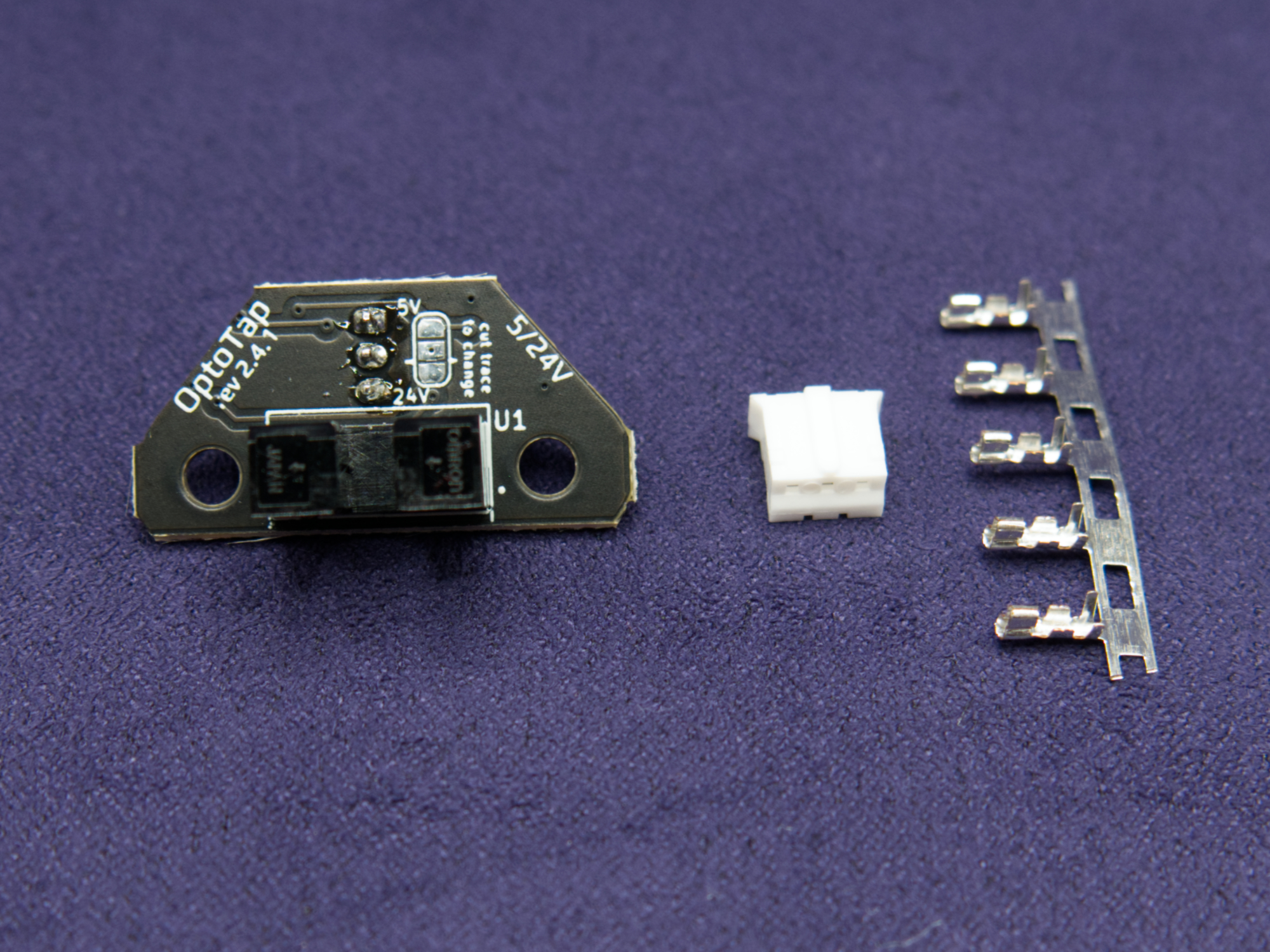

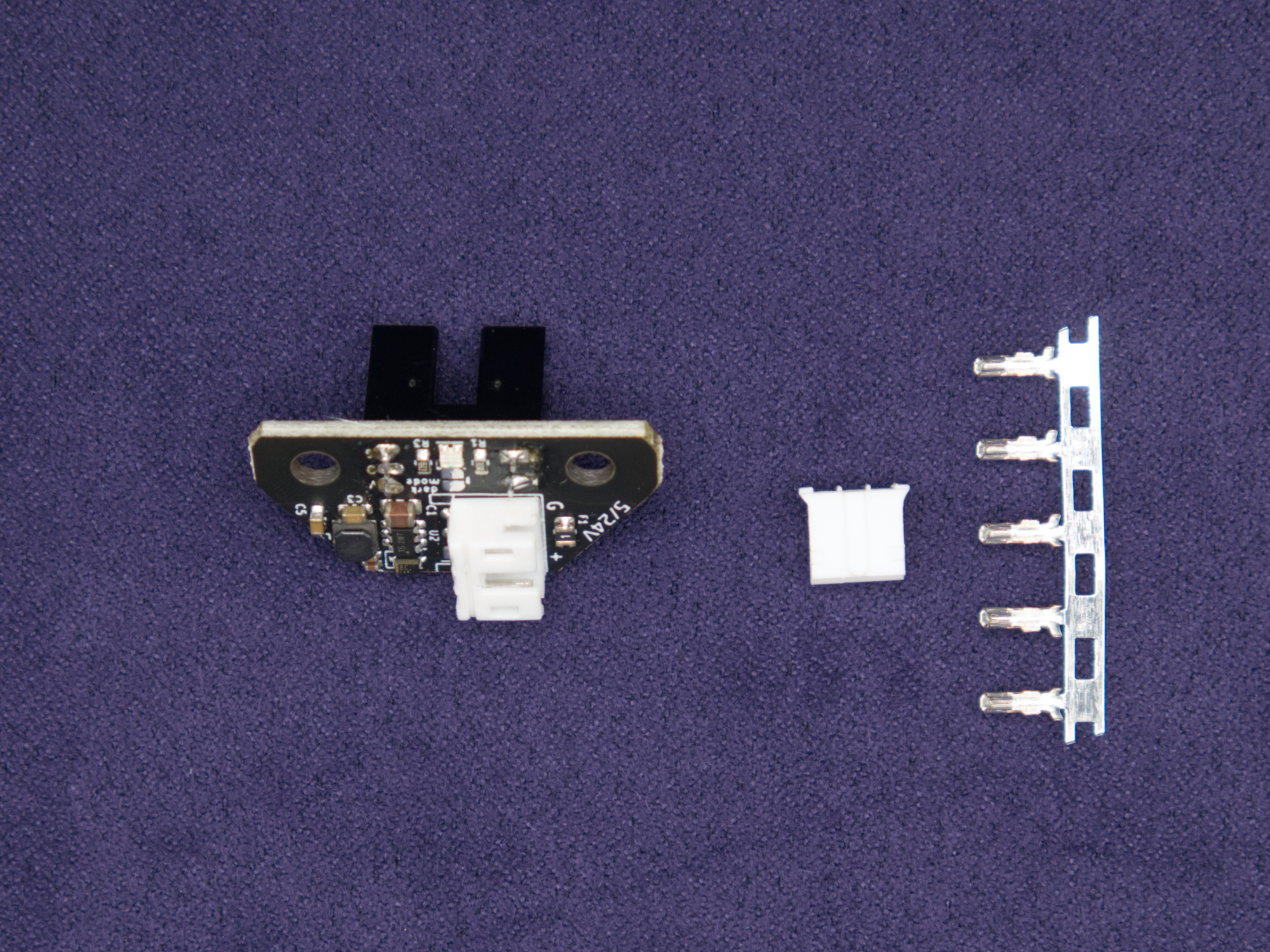

The new and fixed revision of the Voron OptoTap PCB v2.4.1, operates between 5 and 24V.
Comes with the Omron EE-SX398 Sensor.
