DragonDinghy
Product number:
RT10208
Product information "DragonDinghy"
DragonDinghy is a multi-purpose expansion board for Klipper. See below for full specifications.
International Resellers
Buy from JB3D.uk Buy from OneTwo3D

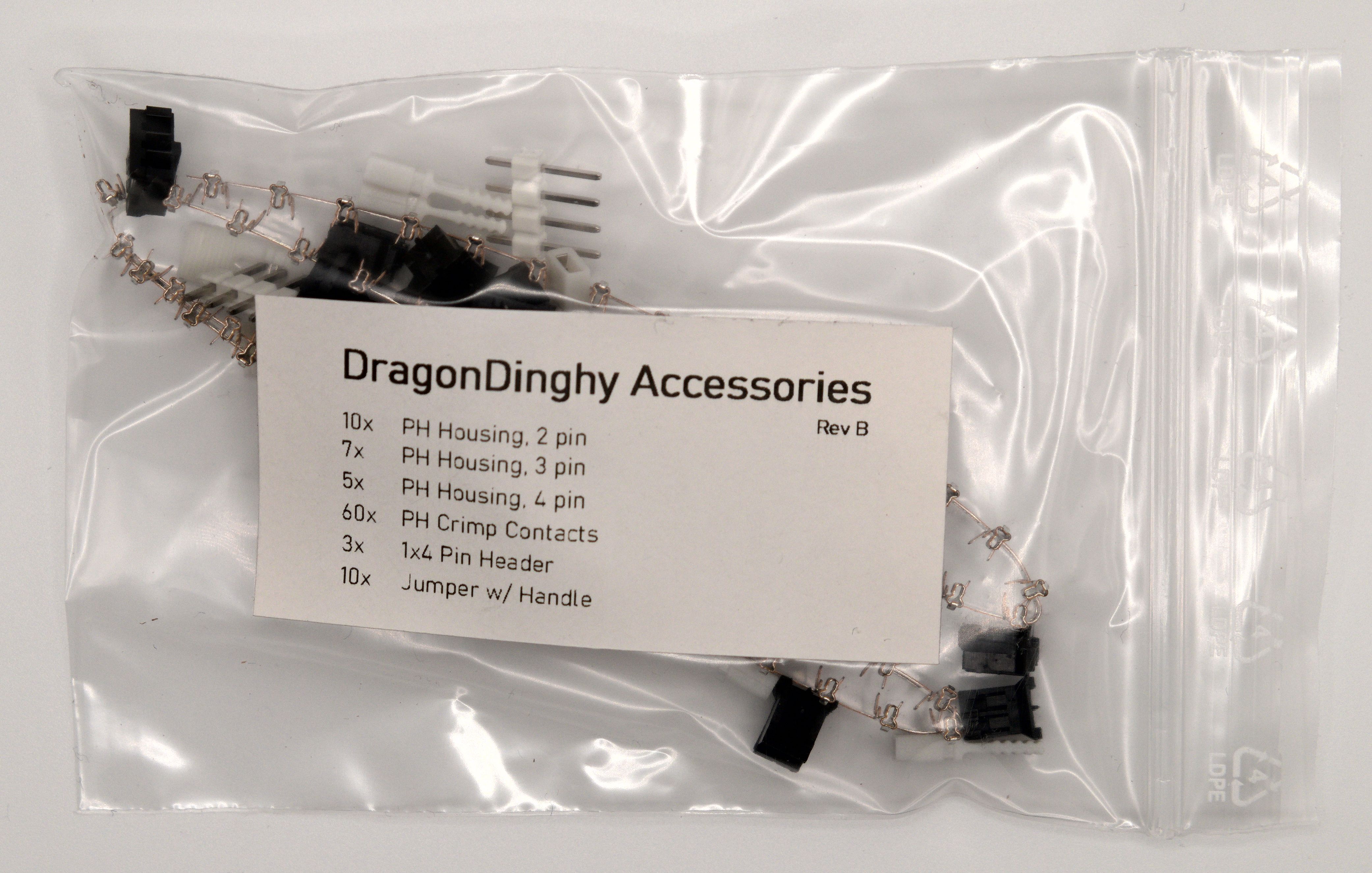

Box Contents
- DragonDinghy PCB
- 10x PH Housing, 2 pin
- 7x PH Housing, 3 pin
- 5x PH Housing, 5 pin
- 60x PH Crimp Contacts
- 3x 1x4 Pin Header
- 10x Jumper with Handle

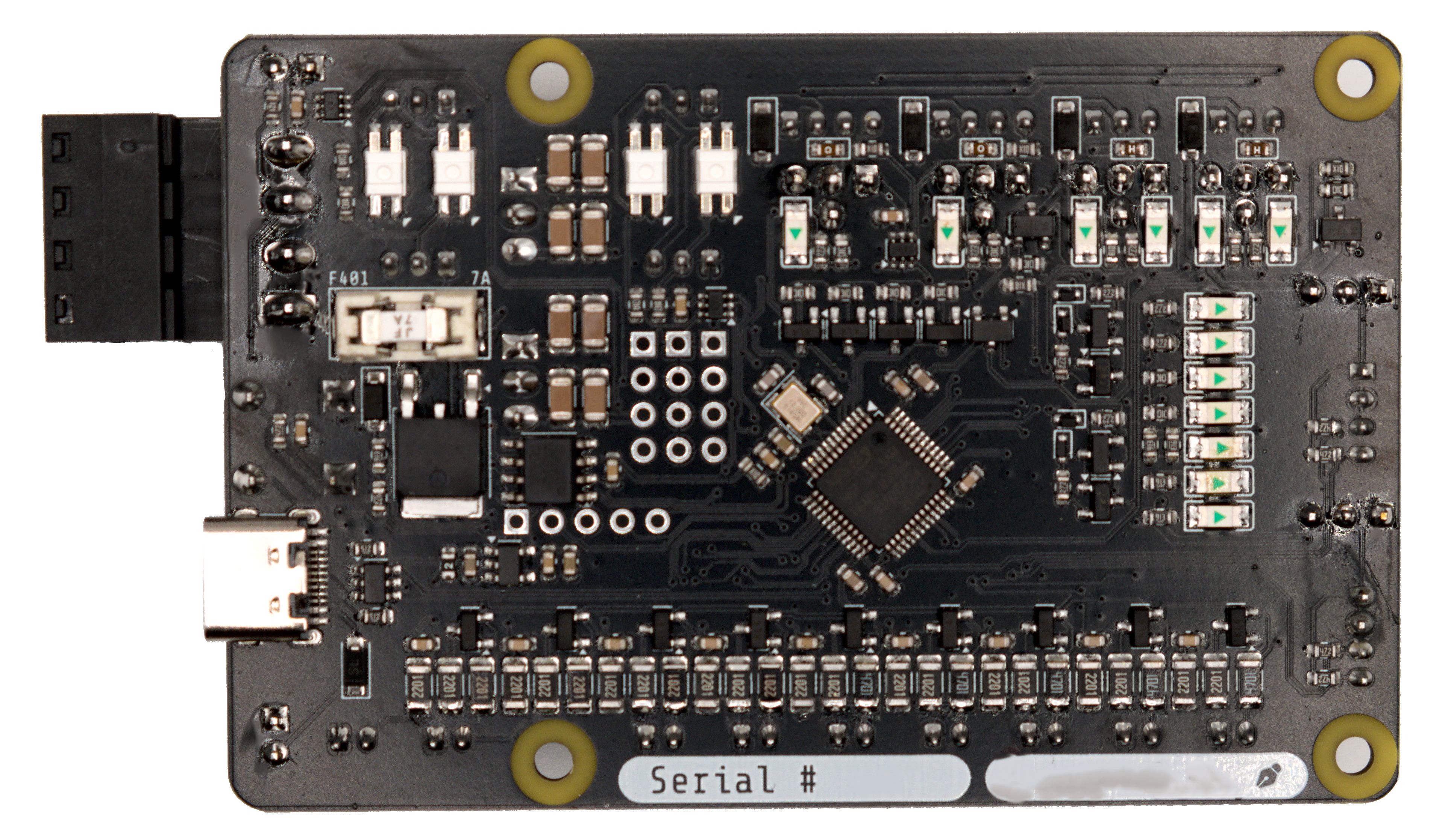

Technical specifications:
- 9 Thermistor Inputs
- 5 Inputs best suited for 100k NTCs, like Generic 3950 or ATC Semitec
- 4 Inputs best suited for PT1000
- 4 Fan Outputs
- 2 GND-switched PWM fan ports with optional tachometer support, 1 A per port
- 2 4-pin Fan Ports, 2A maximum per port
- Each fan output supports 5V, 12V and 24V fans
- 4 RGB Outputs (compatible with WS2812B, SK6812 and Adafruit Neopixel)
- Integrated diagnostic SK6812 RGB LED
- up to 2A (shared with other 5V devices and across all 4 ports)
- 2 I²C ports
- Integrated 12V 2A and 5V 2A step-down converters
- Usage via CAN or USB (or...use it as an USB to CAN bridge?)
- Raspberry Pi compatible mounting pattern

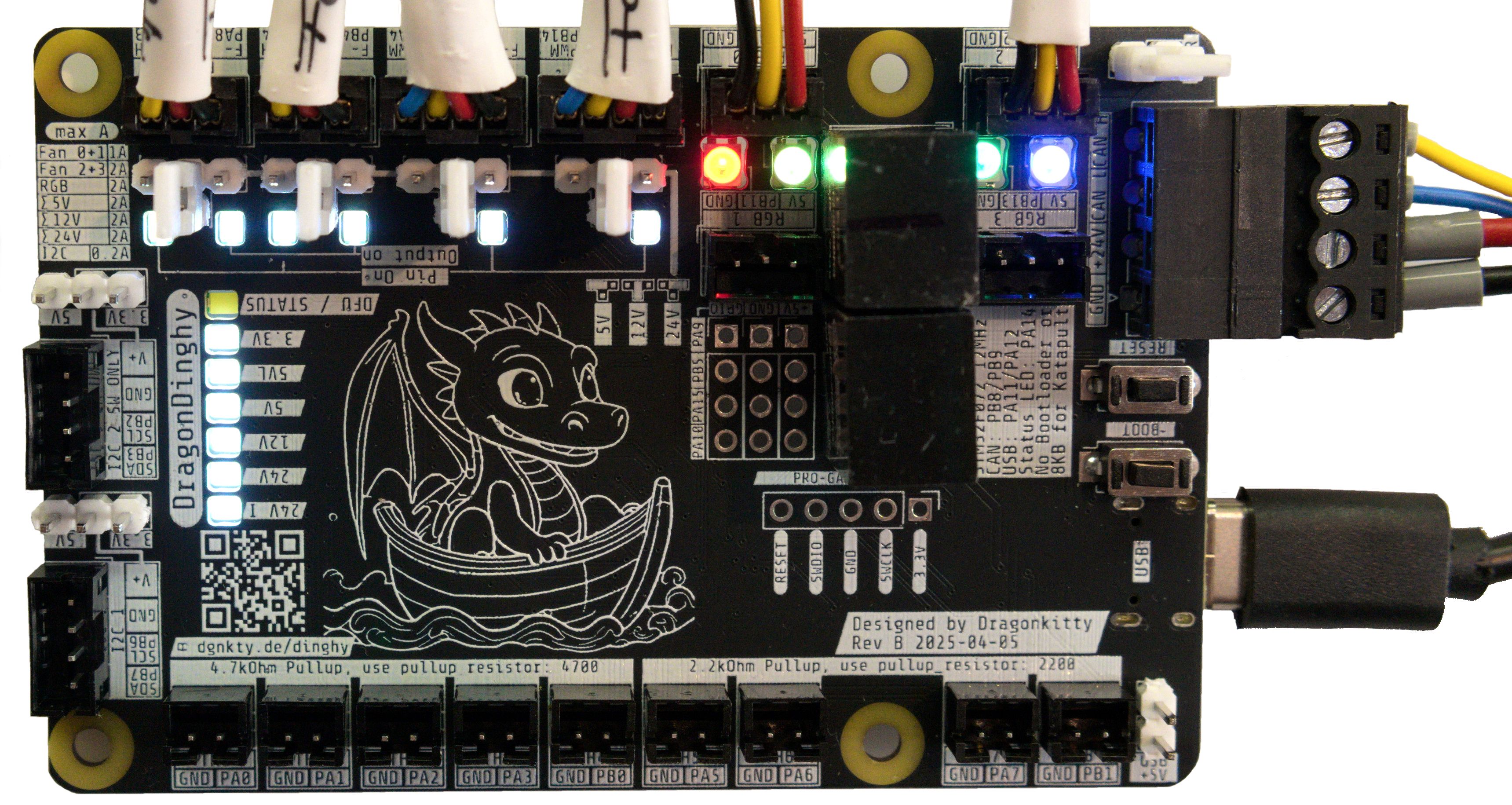

- Extensive Quality-of-Life Features
- All ports are labeled on the board with the pinout and the respective pin for Klipper
- Klipper
menuconfigsettings are printed on the board - Diagnostic LEDs for fan ports, DFU mode and power supply status
- Protection Features
- Reverse Polarity Protection on the main input
- Thermistor inputs withstand accidental short to 24V
